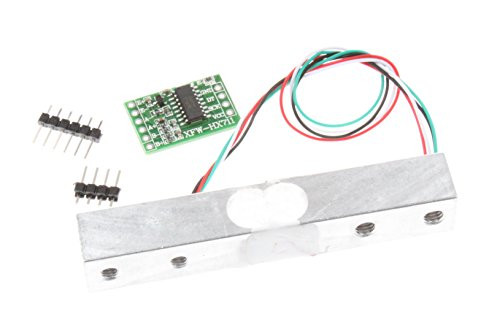

KOOKYE 5kg Load Cell and HX711 Combo Pack Kit Load Cell Amplifier ADC Weight Sensor for Arduino Scale

Information: Load cell - Sturdy aluminum alloy construction. Strain gauges pre-attached with strain relieved wires. Accurately measures forces from 0-5kg (0-11 lb). HX711 - This top of the line load cell amplifier mounted on a breakout board pairs perfectly with the load cell to provide fast, accurate force measurements. It measures small changes in the resistance of the strain gauges mounted to the load cell and passes these values directly to any microcontroller (like an Arduino or Raspberry Pi). Load cell specs: -Wire leads pre-attached, 22 cm (8.5 in) long -Dimensions 12.7 mm high, 12.7 mm wide, 80 mm long (0.5 in x 0.5 in x 3.15 in) -4 mounting holes, 15 mm spacing on each side. One side both holes tapped M4 thread, the other side both holes tapped M5 thread. HX711 specs: -Operation Voltage: 2.7V–5V -Operation Current: < 1.5mA -Mounted on breakout board -Includes breakaway headers for connection, soldering required Connections: Red to E+ Black to E- Green to A+ White to A- Links to tutorials and libraries: https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide https://www.instructables.com/id/Arduino-Scale-With-5kg-Load-Cell-and-HX711-Amplifi/ https://github.com/aguegu/ardulibs/tree/master/hx711 HX711 datasheet: https://cdn.sparkfun.com/datasheets/Sensors/ForceFlex/hx711_english.pdf https://www.youtube.com/watch?v=nGUpzwEa4vg
