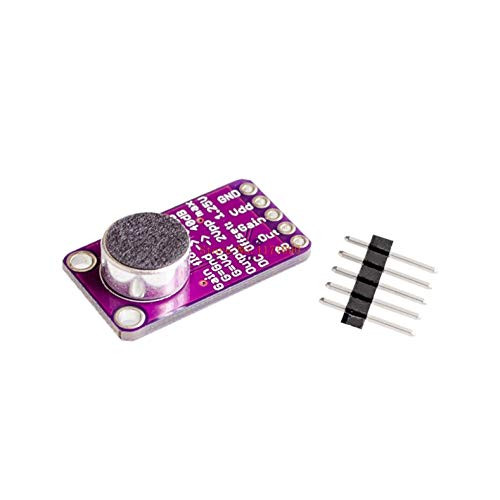

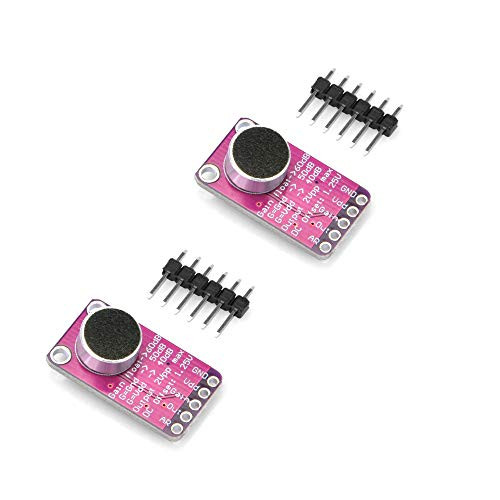

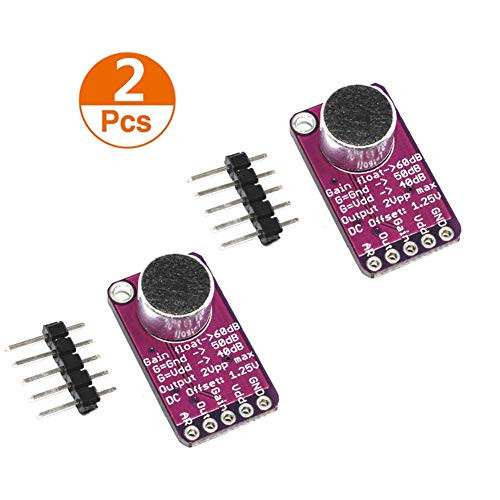

KNACRO MAX9814 Electret MIC Microphone Amplifier Module Auto Gain Control arduino microphone for Arduino

KNACRO MAX9814 Electret MIC Microphone Amplifier Module Auto Gain Control arduino microphone for Arduino

Was: $41.88
Now: $20.94
(No reviews yet) Write a Review
SKU:
HZ61838
UPC:
602258891418
Condition:
New
Availability:
Free Shipping from the USA. Estimated 2-4 days delivery.
Automatic Gain Control (AGC). Three Gain Settings (40dB, 50dB, 60dB). Programmable Attack Time. Programmable Attack and Release Ratio. 2.7V to 5.5V Supply Voltage Range. Low Input-Referred Noise Density of 30nV/. Low THD: 0.04% (typ). Low-Power Shutdown Mode. Internal Low-Noise Microphone Bias, 2V. Available in the Space-Saving, 14-Pin TDFN (3mm x 3mm) Package. -40C to +85C Extended Temperature Range. Size?26*14*8mm(L*W*H). Weight:2.0g. Applications/Uses? Bluetooth Headsets?Digital Still Cameras?Digital Video Cameras?Entertainment Systems (e.g. Karaoke)?High-Quality Portable Recorders.IP Phones/Telephone Conferencing?PDAs?Two-Way Communicators .
!
