Coil parameters
Rated voltage: 12 VDC
Coil resistance: 60 (1±10)?at23?
Rated current: 134 (1±10)mA at23?
Pull-in voltage: 8.4 VDC Max
Release voltage: 1.2 VDC Min
Maximum coil voltage: 15 VDC
Rated power: about 2.4 W
Contact parameters
Contact form: 1A
Contact material: silver alloy
Contact load resistance:
150 A 14 VDC
70 A 72 VDC
50 A 110 VDC
30 A 250 VDC
10 A 450 VDC
Maximum switching voltage: 450 VDC
Maximum switching current: 150 A (resistive, 14VDC)
Contact pressure drop (first time) 80 mV typical, 13.5 V maximum (measured at 10A)
performance
Insulation resistance 10 M? (500 VDC)
Medium pressure
600 VAC between contact and contact, 1 minute
600 VAC between contact and coil, 1 minute
Pull-in time
Typical value: 6 ms (measured at rated voltage)
Maximum value: 50 ms (measured at rated voltage)
Release time
Typical value: 4 ms
Maximum: 50 ms
Environment temperature: -40?125 ?
Storage temperature: -40?125 ?
Impact: 294 m/s2
Vibration: 10Hz?55Hz 3mm double amplitude
Cold storage: -40±2?, 72 hours; the relay junction and performance are not abnormal
Heat-resistant storage: 125±2?, 16 hours; No abnormality in the structure and performance of the relay
Humidity resistant storage: 40±2?, 90?95%, 48 hours; the structure and performance of the relay are not abnormal, and the insulation resistance is at least 100M?
life
Electrical life 1×104 times under rated load (1S on/4S off)
Mechanical life 1×107 times under no load (18,000 times/hour)

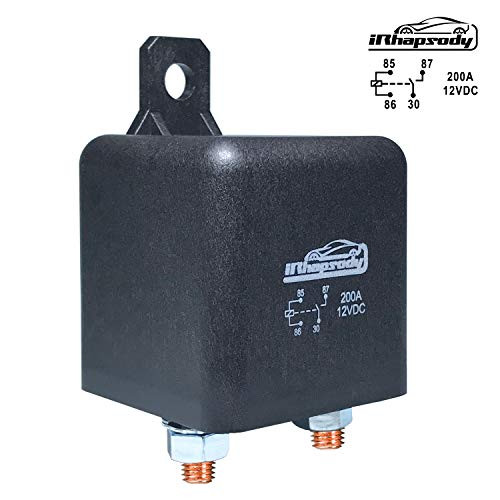

IRHAPSODY 150 Amp High Power Starter Relay 4 Pin 12VDC Heavy Duty Continuous Relay to Switch Power OnOff 4 Terminal Automotive Electrical Relay Split Charger Contactor
Was:
$114.82
Now:
$57.41
- SKU:
- V367823
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
