Features:
1.Power Supply:DC12V
2.Relay Current:<;50mA
3.Dimensions:47*40mm
Instructions:
1.Please pay attention for your first use.You need wait 6s after your setting data,the module will save the date you have set after 6s.
2.Short press button SET:If you start the time setting mode,Nixie tube will blink.You could adjust the time T1 and T2 by button+and button-.Please wait 5s after your setting date,the module will save the date you have set after 5s
3.Long press button SET:if you start the parameter setting mode.There are two group parameter for your choice :P0 and P1.You could switch P0 or P1 by short press SET.Under the parameter P0 and P1,you could set the timing mode by the button+and button-.
P0-0:timing mode is 0-999 seconds
P0-1:timing mode is 0-999 minutes
P0-2:timing when the pattern is 0-999
P1-0:T1 time delay relay (T1 timer)
P1-1:T1 delay time relay releases(T1 timer)
P1-2:time delay relay after T1(T1 timer),then the delay time T2 successor electrical release (T2 timing)ends.
P1-3:T1 delay time relay releases(T1 timer),then the delay time T2 successor Electric energized (T2 timing)ends.
P1-4:time delay relay after T1(T1 timer),then the delay time T2 successor electrical release (T2 timer),repeat the cycle.
P1-5:T1 delay time relay releases(T1 timer),then the delay time T2 successor Electric energized (T2 timer),repeat the cycle.
Package included:

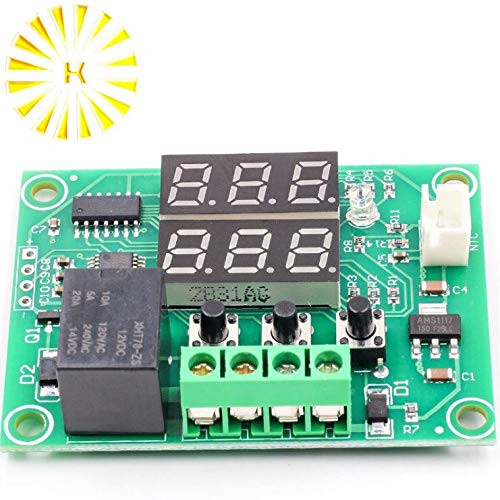

1 x DC12V Relay Module Dual LED Display Cycle Relay Module
