Parameter:
Supply voltage: DC 12V-32V
Output power: 100W*2
Output channel: 2CH
Chip: TPA7498
Output impedance:4~8ohm
Class: Class D
Audio output:Stereo
Operating Temperature:-40?~85?
Operating Humidity:5%~95%RH
Module Size(installed):108*78*47mm
Button description:
Button -: It is used to select previous music or decrease volume.Short press to select play previous music.Long press to decrease volume.
Button +: It is used to select next music or increase volume.Short press to select play next music.Long press to increase volume.
Button RST: It is used to play or pause music.
Using Steps:
1>.Connect work power supply and speaker as shown wiring diagram.
2>.Turn on Bluetooth in phone.
3>.Find Bluetooth device XH-Electronics and select connect.
4>.The blue LED indicator will turn ON if the connection is successful.
5>.Play music and enjoy!
Note:
1>.Please use a matching speaker to ensure that the voice is played properly.
2>.Do not reverse the input wire, otherwise it will damage the module or the speaker.
Package:
Bluetooth Digital Power Amplifier Board x 1

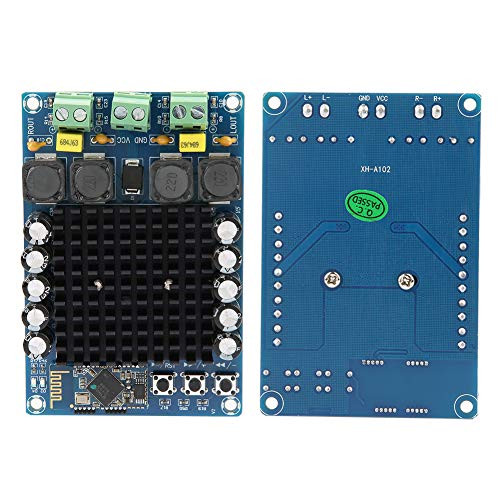

Icstation TDA7498 100w Plus 100w Bluetooth Amplifier Board- Class D Dual Channel Digital Stereo Audio Wireless Receiver Amp Module with Fan DC 12V 24V
Was:
$107.92
Now:
$53.96
- SKU:
- ZC344342
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
