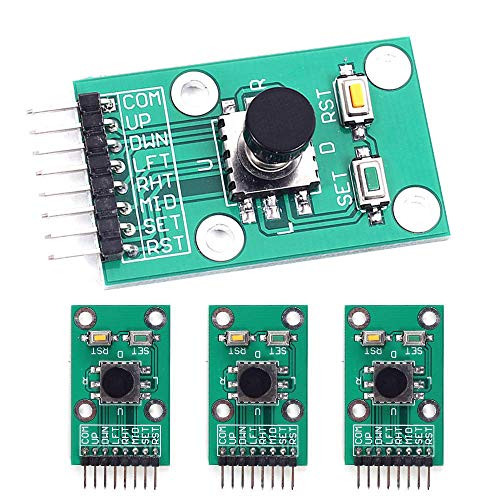

Icstation 5 Way Navigation Key Joystick Keyboard Menu Button Module 3.3V 5V for Arduino Raspberry Pi -Pack of 4-

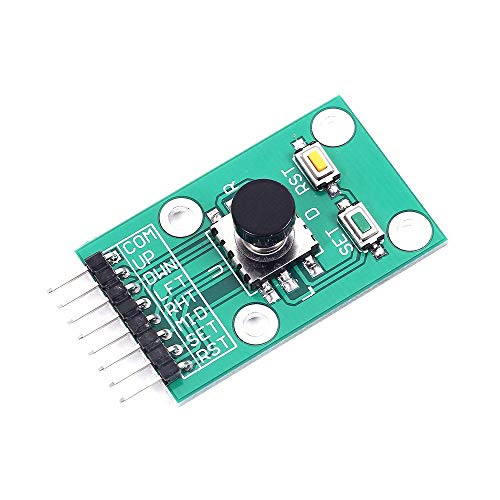

ICStation 5D navigation key module supporting up, down, left, right, middle 5 directions with extra set and reset button. 2V-9V wide working voltage and all pins (7 IO) port pinout compatible for most MCU development board. Module Size: 41 X 25mm/1.61 X 0.98inch (L*W), Operating Temperature: -40 to 85 Celsius. Pin Description: Pin: Function (Remark) COM: Common end (VCC or GND connected to the MCU development board) UP: Up direction button (Connect to IO pin of the MCU) DWN: Down direction button (Connect to IO pin of the MCU) LFT: Left direction button (Connect to IO pin of the MCU) RHT: Right direction button (Connect to IO pin of the MCU) MID: Middle direction button (Connect to IO pin of the MCU) SET: Set button (Connect to IO pin of the MCU) RST: Reset button (Connect to IO pin of the MCU) Package: 1PC X Five direction navigation button module
