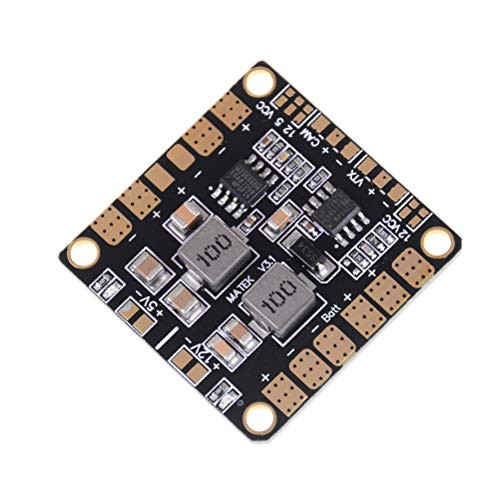

ICQUANZX V3-1 PDB Power Distribution Board with BEC 5V 12V Mini Power Hub for Multicopter Quadcopter

SpecificationsGeneral: Input voltage range (3S-6S operation): 9 - 26VDC Regulated 5V and 12V outputs LED power indicators ( 5V & 12V outputs ) 4 ESC outputs ESC outputs: Continuous current: 20A per output Peak current (10 seconds/minute): 25A per output BEC 5V output: Designed for RC Receivers, Flight controllers, OSD, and Servos. DC/DC synchronous buck regulator, Efficiency is up to 95%. Voltage: 5.0 +/- 0.1VDC Continuous current: 3 Amps Short-circuit tolerant (10 seconds/minute) LED (indicates voltage is in regulation) BEC 12V output: The battery should be 4S~6S LiPo Standard output designed to power cameras and video transmitters,etc. Voltage: 12.0 +/- 0.2VDC Continuous current: 2 Amps (Max.3A 10s/minute) Short-circuit tolerant (10 seconds/minute) LED (indicates voltage is in regulation) CAM & VTX voltage bridge 3S operation. choose ""VCC"" for 12V camera & 12V VTX, VCC=Battery Voltage. 4~6S operation, choose ""12"" for 12V camera & 12V VTX 3~6S operation, choose ""5"" for 5V camera Video pass through from the ""CAM"" pad to the ""VTX"" pad Physical: Dimensions: 36 x 36mm Weight: 6g Mounting holes 30.5mm square spacing List? 1 X Power Hub Power Distribution Board
