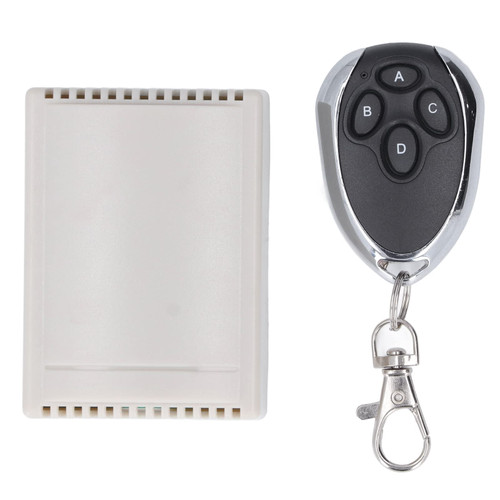

Hilitand Relay Board Module Remote Control Transmitter Wireless Remote Control Rolling Code 2 Channel 433M Relay Receiver Switch Module

How to Use: Typical Application: Remote control, telemetry system; DC 12V home lighting system; Garage door; Elevator; Motor CCW control; Remote control; Smart home or home automation; LED light; Fluorescent lamp; DC12 DC motor; For RS360 PTZ Camera Specification: Item Type: Relay Receiver Switch Module Model: RF32B02+RC43A04 Material: ABS, PCB Relay Board Module Parameters:  Working Voltage: DC 12V; Working Current: Standby current (all relays closed) 13MA, 1 relay open 41MA, 2 relays open 68MA; Wireless Receiving Frequency: 433.92M; Wireless Receiving Sensitivity: -108dBm; Decoding Method: Rolling code, only suitable for RC43A04 (HCS301 remote control) remote control, can store up to 32 RC43A04 remote control; Working Mode: Non locking (Momentary is defult), self locking (Toggle), interlocking (Latch), delay; delay time can be 5 seconds, 10 seconds, 120 seconds; Relay Maximum Load (recommended <5A): 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC. Remote Control Transmitter Parameters:  Power Supply: 12V 27A alkaline battery (not include) Working Current: ?9mA; Oscillation Mode: SAW resonator; Modulation Method: ASK; Working Frequency: 433.92MHz; Frequency Deviation: ±150Hz (maximum); Coding Format: Rolling code (HCS301). Package List: 1 x Relay Board Module 1 x Remote Control Transmitter
