Specification:
Material: ABS
Color: Silver
Working voltage: DC5V
5V (the 3.7V5V is connected to the back of the board. If the 3.7V lithium battery is used, the 3.5DC5V hole of the panel is the input of charging)
Working current: 800MA1.2A
Output amplitude: 10W (connected to two 4 ohm 5W fullrange speakers)
Panel size: 135 * 73 * 45 MM
Opening size: 117 * 54 * 45 MM
Size: 135 * 73 * 45mm / 5.3 * 2.9 * 1.8in
Weight: approx. 93g
Package List:
1 * Decode Board
Panel button description:
1. "PREV/VOL": Use a potentiometer with a switch;
2. "PLAY/PAUSE": In the USB/SD/Bluetooth state, short press play/pause; in the FM state, long press the full channel search station and save the station.
3. "Upper/Slow": When USB/SD playing status, press and hold for fast forward and fast reverse; in Bluetooth state, short press for up/down track; in FM state, short press up/down for Radio station.
4. "MODE": USBSDBluetoothFMAUX Switch

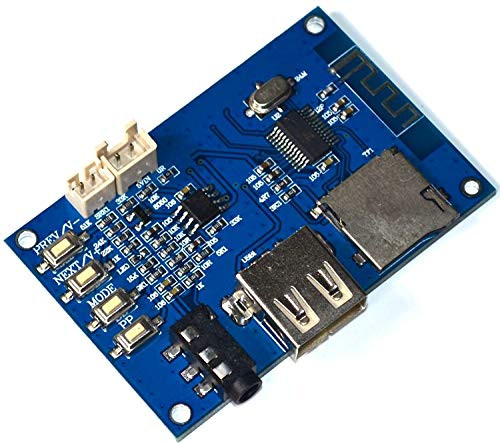

Hilitand MP3 Decoder Board, 5V Bluetooth Lossless Speaker Decode Board with Amplifier, Decoder Board Module, Support MP3/WMA/WAV/FLAC Format Music
Was:
$64.94
Now:
$32.47
- SKU:
- ZDT461671
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
