HiLetgo 5pcs IRF520 MOSFET Driver Module MOSFET Button Drive for Arduino MCU ARM Raspberry PI

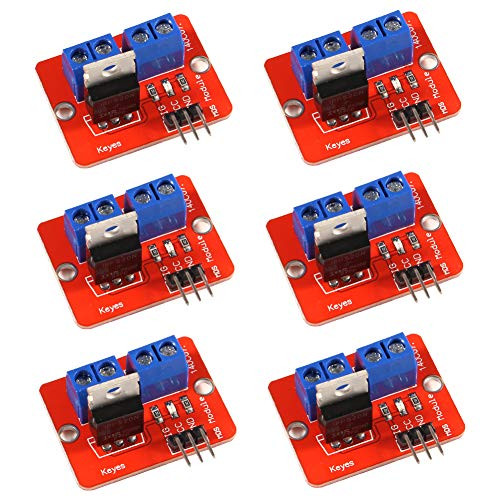

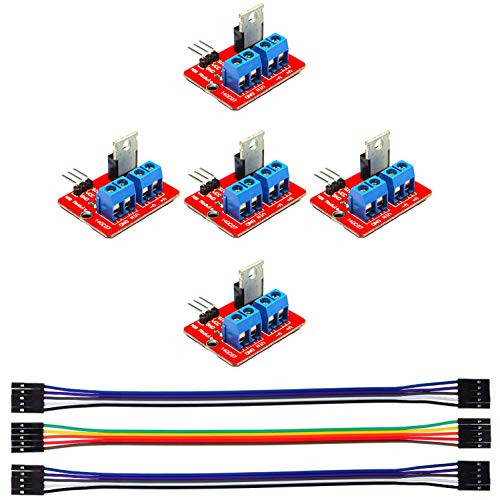

Description? This little module is a breakout board for the IFR520 MOSFET transistor. The module is designed to switch heavy DC loads from a single digital pin of your microcontroller. Its main purpose is to provide a low cost way to drive a DC motor for robotics applications, but the module can be used to control most high current DC loads. Screw terminals are provided to interface to your load and external power source. An LED indicator provides a visual indication of when your load is being switched. Specification: Size: 33*24mm Voltage: 3.3V, 5V Ports: Digital Level Output load voltage: 0-24V Output load current: <5A (1A above need to add heat sink) Platform: Arduino, MCU, ARM, raspberry pie Using original IRF520 Power MOS, you can adjust the output PWM Drive up to 24V allows the load, such as LED lights, DC motors, miniature pumps, solenoid valves PWM dimming LED can be used to achieve stepless dimming, variable speed motor Package Included: 5* IRF520 MOSFET Driver Module
