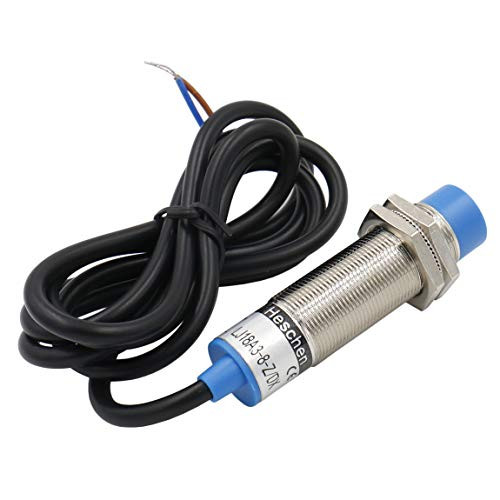

Heschen M18 Inductive Proximity Sensor Switch Non-Shield Type LJ18A3-8-Z/BY Detector 8mm 10-30VDC 200mA PNP Normally Open-NO- 3 Wire

Detection Object: Magnetic metal(the detection distance decreases when it is non-magnetic metal). Delay Distance: 10% below of the detection distance. Supply Voltage:DC10-30V Impulse (p-p)10% below. Comsuption Current: 13mA below. Control Output: 200mA below. Loop Protection: Reversal connection protection,surge absorption,load short-circuit protection. Ambient Temperature & Humidity:During operation, storage: individually-30??65?(no freeze ,no drew ), During operation,storage:individually 35-95%RH. Insulation Impedance: 50M? above ( DC500 megameter ) between charging part and shell. Withstand Voltage: AC1000V 50/60Hz 1 min. between charging part and shell. Temperature Influence: Temperature range-30??65?,at + 23?,± 15% detection distance, Temperature range-25??60?,at +23?,±10% detection distance. Voltage influence: Inside ±15% rated supply voltage range,at rated supply voltage value ,inside ± 10 % detection distance.
