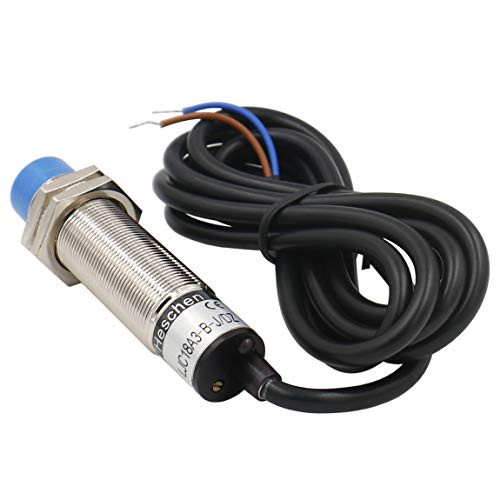

Heschen M18 Capacitive Proximity Sensor Switch Non-Screen Shield Type LJC18A3-B-ZAX Detection 10mm 6-36 VDC 300mA NPN Normally ClosedNC 3 Wires

Detection Object:Can detect any dielectric. Delay Distance:10% below of the detection distance. Supply Voltage:DC12-24V(6-36V) Impulse (p-p)10% below. Comsuption Current:13mA below. Control Output:300mA below. Loop Protection :reversal connection protection,surge absorption,load short-circuit protection. Ambient Temperature & Humidity:During operation , storage : individually-30??65?(no freeze ,no drew ) ,During operation,storage:individually 35-95%RH. Insulation Impedance :50M? above ( DC500 megameter ) between charging part and shell. Withstand Voltage : AC1000V 50/60Hz 1 min. between charging part and shell. Temperature Influence : Temperature range-30??65?,at + 23?,± 15% detection distance, Temperature range-25??60?,at +23?,±10% detection distance. Voltage influence : Inside ±I5% rated supply voltage range,at rated supply voltage value ,inside ± 10 % detection distance.
