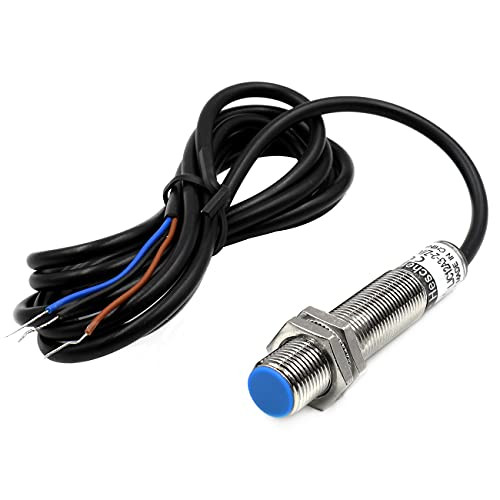

Heschen M12 Capacitive Proximity Sensor Switch Non Screen Shield Type LJC12A3 5 Z BY Detector 1 5mm 10 30VDC 200mA PNP Normally Open NO 3 Wires

Detection Object:Can detect any dielectric. Delay Distance:10% below of the detection distance. Supply Voltage:DC12-24V(6-36V) Impulse (p-p)10% below. Comsuption Current:13mA below. Control Output:300mA below. Loop Protection :reversal connection protection,surge absorption,load short-circuit protection. Ambient Temperature & Humidity:During operation , storage : individually-30??65?(no freeze ,no drew ) ,During operation,storage:individually 35-95%RH. Insulation Impedance :50M? above ( DC500 megameter ) between charging part and shell. Withstand Voltage : AC1000V 50/60Hz 1 min. between charging part and shell. Temperature Influence : Temperature range-30??65?,at + 23?,± 15% detection distance, Temperature range-25??60?,at +23?,±10% detection distance. Voltage influence : Inside ±I5% rated supply voltage range,at rated supply voltage value ,inside ± 10 % detection distance.
