ITEM ID: AN_GPS_A001

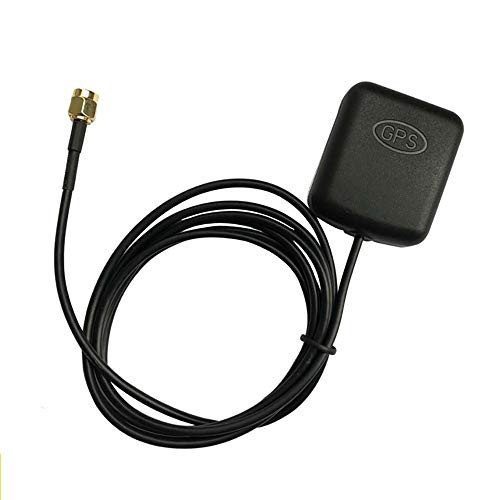

GPS Active Antenna Rectangular Shape
Antenna Center Frequency:1575.42±1MHz Band Width:CF±5MHz Polarization:RHCP Gain:2dBic?Zenith? V.S.W.R:?1.5 Impendance:50? Axial Ratio:3dB?max? Dimension:49.4 *39.3 *14.9mm LNA Gain:28±2dB Noise Figure:?1.5 Filter Insertion Loss:?3dB Ex-band Attenuation:12dB@CF+50MHz/16dB@CF-50MHz Supply Voltage:2.2~5V DC Current Consumption:5~15mA V.S.W.R:?2.0 Mechanical Cable:RG174 Connector:SMA Radome Material:ABS Mounting Method:Magnet Environmental Operating Temperature:-40?~+85? Relative Humidity:Up to 95% Ingress Protection:IP66 Vibration:10 to 55Hz with 1.5mm amplitude 2hours Environmentally Friendly:ROHS Compliant Ideal for GPS signal boosting of the GPS device, GPS sensors, GPS Speedometers and other M2M IoT devices!
