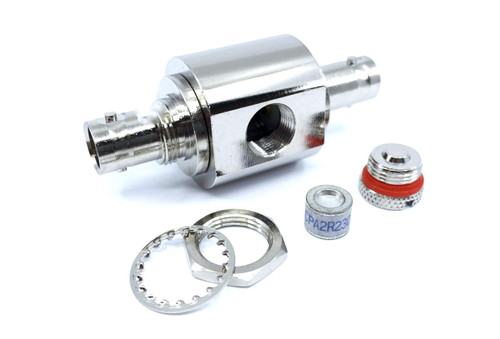

GIMILINK BNC Coaxial Lightning Arrestor Surge Protector 50 Ohm BNC Male to Female Thunder & Lightning Protection Device for CCTV Camera Video

GIMILINK Coaxial Lightning Surge Protector Arrestor BNC-Male to BNC-Female 50 Ohm -Protects signal amplifiers from power surges typically caused by lightning strikes to antennas mounted outdoors. -Designed to be placed between amplifier and outside antenna cable connection, need to be grounded. -Ideal for CCTV camera, vedio system, Ham radio gear, CB antenna, two-way radio. Electrical Specifications -Input Impedance: 50? -Frequency Range: DC - 3 GHz (0-3 GHz) -Durability: ? 500 cycles -VSWR: <1.2:1 -Insertion Loss: <0.15dB -DC Breakdown Voltage: 90 V -Gas Tube Impulse Breakdown Voltage: 700V -Maximum Withstand Current: 5 kA -Gas Tube Insulation Resistance: 1000M Ohm Mechanical & Environmental -Connector Types: BNC-Male to BNC-Female -Connector Body Material: Tri-Metal Albaloy (Copper/Tin/Zinc) Plated Silicon Bronze (QSi3-1) -Body Material: Nickel Plated Brass (HPb59-1) -Insulator Material: PTFE -Temperature Range: -40 to +85C Installation Tips -AWG 8/9/10 wire is suitable for grounding Package Content -1 x Coaxial Lightning Arrestor Surge Protector BNC-Male to BNC-Female 50 Ohm ( 90V gas discharge element assembled )
