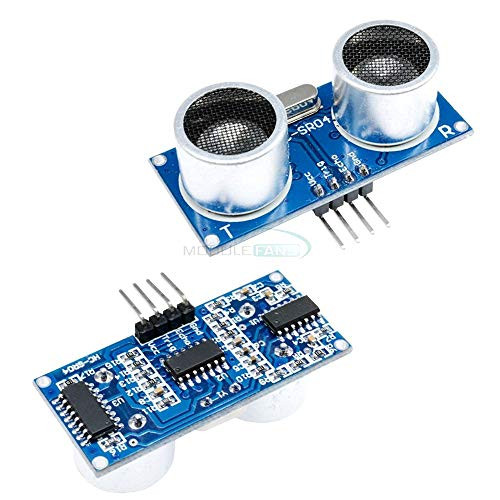

Geekcreit Ultrasonic Module HC-SR04 Distance Measuring Ranging Transducer Sensor DC 5V 2-450cm

Working Voltage : 5V(DC) Static Current: Less than 2mA. Output Signal: Electric frequency signal, high level 5V, low level 0V. Sensor Angle: Not more than 15 degrees. Detection Distance: 2cm-450cm. High Precision: Up to 0.3cm Input Trigger Signal: 10us TTL impulse Echo Signal : output TTL PWL signal Mode of connection: VCC trig(T) echo(R) GND Use method: Supply module with 5V, the output will be 5V while obstacle in range, or 0V if not.The out pin of this module is used as a switching output when anti-theft module, and without the feet when ranging modules. Note : the module should be inserted in the circuit before been power, which avoid producing high level of misoperation;if not, then power again. Module Working Principle: 1. Adopt IO trigger through supplying at least 10us seq
