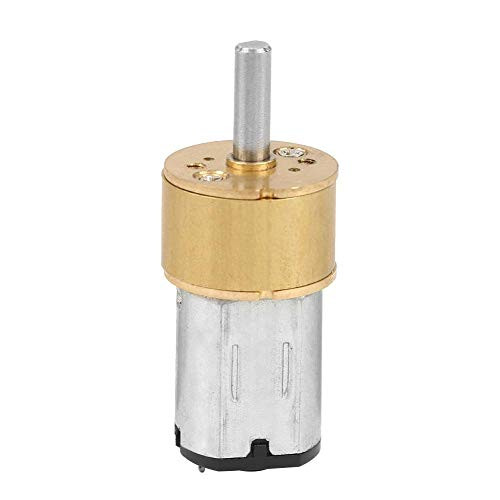

Gear Motor DC 6V 14MM N20 Electric Micro Speed Reduction Geared Motor Output Shaft for Robot DIY-60RPM-

Specification: Voltage: 6V DC Speed: 60 RPM, 100 RPM, 300 RPM, 600 RPM(Optional) Gear Box diameter: 14mm/0.6in Output shaft length: 10mm/0.4in Output shaft diameter: 3mm/0.1in, cutting edge 0.5mm, D-shaped shaft Size: 35*15mm/1.4*0.6in Weight: Approx.13g/0.5oz Voltage Gear ratio No load Load Stall Speed(Optional) Current Speed Current Moment of force Current Moment of force 6V 1: 298 60RPM ?30mA 55RPM ?45mA 460g.cm ?1.1A 4.2kg.cm 6V 1:100 100RPM ?30mA 83RPM ?45mA 320g.cm ?1.1A 2.25kg.cm 6V 1: 50 300RPM ?40mA 240RPM ?50mA 140g.cm ?1.1A 2.0kg.cm 6V 1: 50 600RPM ?50mA 500RPM ?60mA 65g.cm ?1.1A 2.2kg.cm Package list: 1 x DC Gear motor
