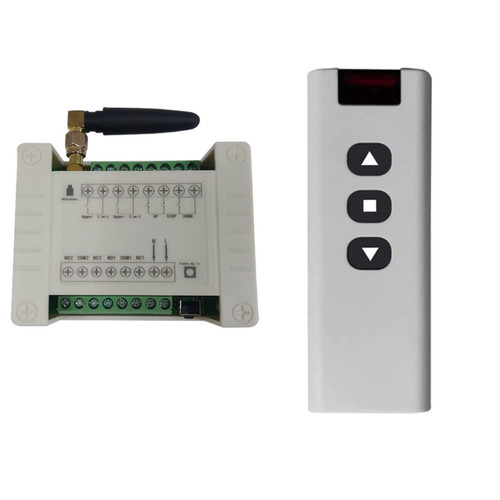

fushionsea DC 8V 12V 24V 36V Motor Remote Control Switch for Control Linear Actuator, 433Mhz 10A Motor Forward Reverse Relay Switch?Momentary Mode?

fushionsea DC 8V 12V 24V 36V Motor Remote Control Switch for Control Linear Actuator, 433Mhz 10A Motor Forward Reverse Relay Switch?Momentary Mode?

Was: $85.88
Now: $42.94
(No reviews yet) Write a Review
SKU:
ZDT984996
Condition:
New
Availability:
Free Shipping from the USA. Estimated 2-4 days delivery.
Adding to cart… The item has been added
About Receiver: Model ? WJZH-M01 Working voltage?DC8-36V Quiescent condition?Less than 8mA Working temperature?-40 Degree +80 Degree Receiver sensitivity?more than -105dBm Working frequency?433mhz Function?Limit & Wire External Button Max load ?10A ?suggest motor load less than 5A? Size?68 x 44 x 25mm Working Model?Working way changed by learning button on the Receiver Momentary ? press and hold the transmitter button up,motor forward.Release the button,motor stop. press and hold the transmitter button down ,motor Reverse.Release the button,motor stop. Learning and clearing Learning method? Momentary: Press learning button once, the indicator flash once and ON , Then press the transmitter button up ,the learning indicator flash 3 times and ON,Then press the transmitter button down, the learning indicator flash 3 times and OFF, It mean the Momentary model learning Successfully Clearning method: Press learning button 3 times, the learning indicator will flash 5 times and OFF , It mean all the transmitter code in the receiver have been cleared. Features Manual control (default momentary) Momentary: The MD soldered dot on the receiver don't need to be connected. Press and hold the external K1 button motor will forward. and the motor stops after Release the button. Press and hold the external K2 button, the motor reverses, and the motor stops after Release the button. Package Includes 2 x Transmitters 1 x Receiver
!
