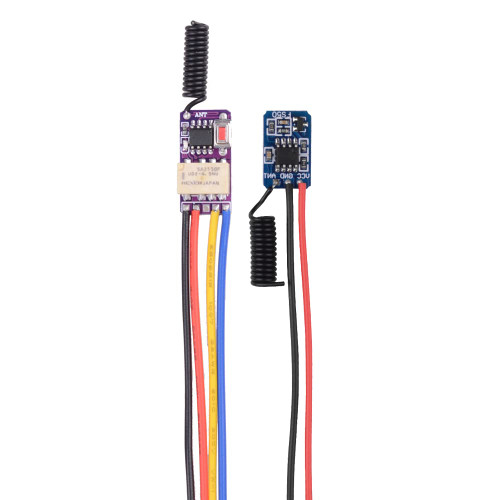

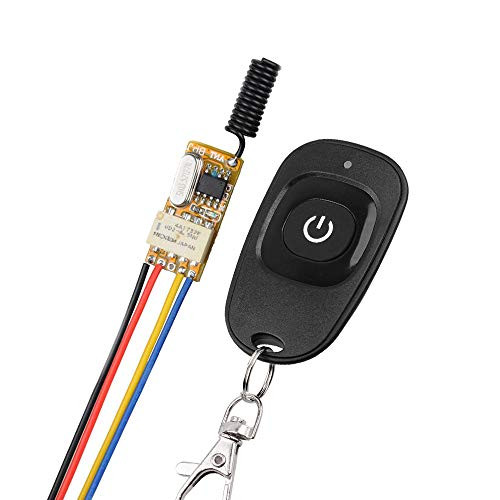

fushionsea DC 3.7V 5V 6V 7V 9V 12V Mini Relay Wireless Remote Momentary Switch, 3V -12V Small PCB 433mhz RF Transmitter Battery Power Circuit Micro Controller

fushionsea DC 3.7V 5V 6V 7V 9V 12V Mini Relay Wireless Remote Momentary Switch, 3V -12V Small PCB 433mhz RF Transmitter Battery Power Circuit Micro Controller

Was: $79.96
Now: $39.98
(No reviews yet) Write a Review
SKU:
ZDF390726
Condition:
New
Availability:
Free Shipping from the USA. Estimated 2-4 days delivery.
Adding to cart… The item has been added
About Receiver: Model No.: V1A Working voltage: DC3.7V-12V Quiescent Current: 0.3mA Working temperature: -40 Degree +80 Degree Receiver sensitivity: more than -109dBm Working frequency: 433mhz Relay Working Current: 30-35ma Max load current: Max Load: 1A (have better Load less than 700ma) Size: 25*11*8MM About Working way: Working way changed by learn button Latched: Relay:Press -> On; Press other button -> Off. Momentary: Relay: Press and hold -> On; Release -> Off. Toggle: Relay: Press -> On; Press same button again -> Off Delay time :Press remote control button, the corresponding relay actuates and keeps working until the time out. Learning method : Input 3.7-12V for the Receiver , Press Learning Button, The receiver Led indicator ON. Press remote button 1 time, Led indicator flash for 1 times , Then Press remote other button 1 time , Led indicator flash for 1 times again , it mean learning successfully Latched : Press and hold on the Learning Button . Until the receiver Led indicator flash for 1 times, it mean Change Latched successfully. Momentary : Press and hold on the Learning Button . Until the receiver Led indicator flash for 2 times, it mean Change Momentary successfully. Toggle : Press and hold on the Learning Button . Until the receiver Led indicator flash for 3 times, it mean Change Toggle successfully. Delay time 5s : Press and hold on the Learning Button . Until the receiver Led indicator flash for 4 times, it mean Change Delay time 5s successfully. Press and hold on the Learning Button . Until the receiver Led indicator flash for 7 times, it mean Clearing Code successfully Remote control parameters: frequency: 433Mhz Working current: ?12mA Working Voltage?3.7v -- 9v Transmission Distance: 10-50 Meters Package Include: 1 x Receiver(without cover) 1x Transmitter
!
