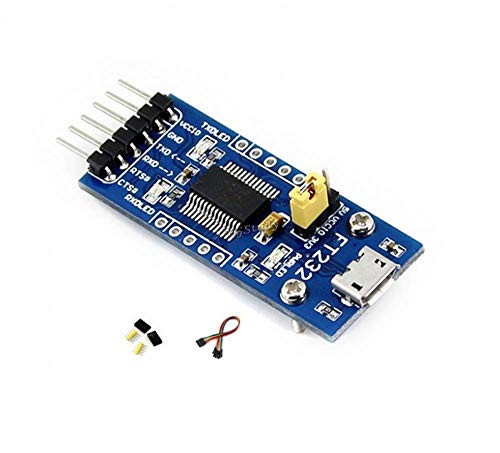

FT232 USB UART Board (micro) FT232R FT232RL to RS232 RS485 TTL Serial Converter USB Micro Connector Module Kit @XYGStudy

Features Original FT232RL onboard Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10... 3 power mode : 5V output, 3.3V output, or powered by target board (3.3V-5V) 3 LEDs: TXD LED, RXD LED, POWER LED Functional Pins * TXD, RXD, RTS#, CTS# : connected to the onboard soldered pinheaders * The other Pins : accessable on the drill holes (separate pinheaders are also provided for easily connecting to user system, the pitch is compatible with bread boards) How to Use (In the case of working with a MCU) VCCIO--3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V) GND -- GND TXD -- MCU.RX (signal direction: MCU.RX < FT232 < PC.TX) RXD -- MCU.TX (signal direction: MCU.TX > FT232 > PC.RX) RTS -- MCU.CTS (signal direction: MCU.CTS < FT232 < PC.RTS) CTS -- MCU.RTS (signal direction: MCU.RTS > FT232 > PC.CTS) Package Contains FT232 USB UART Board (micro) × 1 5-pin male pinheader & 5-pin female pinheader × 2 6-pin custom connector jumper wire × 1 For more details you may need to know, pls firstly send me message via Amazon, I will then send attached link including User Guide for you, thank you for patience.:)
