Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 56g±2g
3. Gear type: 5 Metal
4. Limit angle: 360°
5. Bearing: 2BB
6. Horn gear spline: 25T, Diameter :5.9mm
7. Horn type: Plastic, POM
8. Case: Engineering plastics(PBT)+Aluminum alloy
9. Connector wire: 320mm±5mm
10. Motor: Carbon brush motor
Electrical Specification:
1. Operat voltage: 4.8V - 7.2V
2. No load speed: 0.32sec/60° - 0.22sec/60°
3. Runnig current: 140mA - 200mA
4. Peak stall torque: 32.7kg.cm - 35.2kg.cm
5. Stall current: 2600mA±10% - 3400mA±10%
6. Working voltage range: 4.8 - 7.2V
Control Specification:
1. Command signal: Pulse width modification
2. Amplifier type: Digital controller
Apply Environmental Conditon:
1. Storage Temperature Range: -30°C?80°C
2. Operating Temperature Range: -25°C?70°C
Standard Test Environment:
1. Temperature Range: -25°C?70°C
2. Humidity Range: 65%±10%
Package Included:

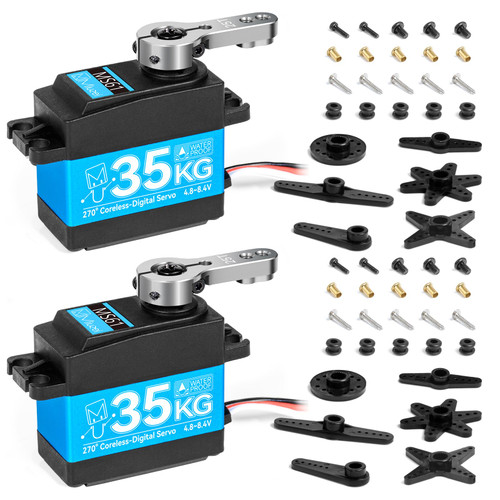

1 x 35kg 270 degree servo
1 x 25t arm
FPVKing Waterproof 35KG 270 Degree High Torque Coreless Motor Servo Metal Gear Digital and 25T Arm for Robotic RC Car Crawler DIY
Was:
$91.96
Now:
$45.98
- SKU:
- M248051
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
