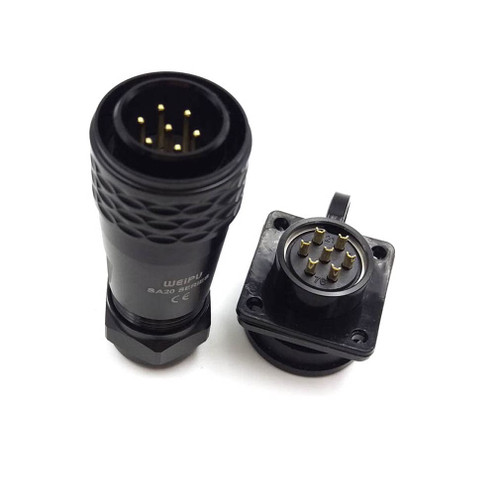

FORTTAR WEIPU SA20 Series 12 pin Waterproof Connector, IP67 12 Wire Aviation Industrial High Voltage Electrical Heavy Circular Connector Plug Socket, Black (Bulkhead Panel Mount, 12 Pin)

WEIPU SA20 IP67 Waterproof connector, 2 3 4 5 6 7 12 15 PIN Aviation Connector POWER CABLE AVIATION PLUG SOCKET 2pin, 3pin, 4pin: Rated Current (A): 50A Contact diameter × number: ?2.5x2 / ?2.5x 3 / ?2.5x 4 Rated voltage (AC.V.): 500V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 1m? Wire specification: <4m?/11AWG 5pin, 7pin: Rated Current (A): 25A Contact diameter × number: ?1.5x5 /?1.5x7 Rated voltage (AC.V.): 500V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 2.5m? Wire specification: <2m?/14AWG 6pin: Rated Current (A): 25A, 5A Contact diameter × number: ?2.5x4, ?1.0x2 Rated voltage (AC.V.): 500V Withstanding Voltage (AC.V) 1 minute: 1500V Contact resistance: 1m?, 5m? Wire specification: <4m?/11AWG, <0.785m?/18AWG 9pin, 12pin, 15pin: Rated Current (A): 5A Contact diameter × number: ?1.0x9 / ?1.0x12 / ?1.0x15 Rated voltage (AC.V.): 500V (400V: 12pin, 15pin) Withstanding Voltage (AC.V) 1 minute: 1500V (1200V: 12pin, 15pin) Contact resistance: 5m? Wire specification: <0.785m?/18AWG Other details: Coupling: Push-pull, Self-lock Shell material: Anodized aluminium Insert Material: PPS, max temperature 260° Contact material: Brass with gold plating Termination: solder (2 to 5 pin crimp available) Cable outer diameter range: 8-12mm max
