Features:

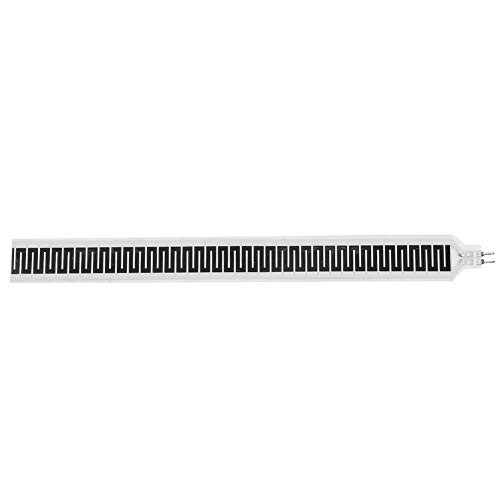

This flexible pressure sensor is based on new nanometer pressure-sensitive materials supplemented by ultra-thin film substrate. Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure. It has pressure sensitive function as well as water-resistant function. When sensor detects outside pressure, the resistance of sensor will change. Pressure signal can be converted into a corresponding electrical signal output using simple circuit.
Specifications:
Measuring Range: 0~10kg Thickness: <0.25mm Response Point: <20g Repeatability: <±4.1%(50% load)
Precision: ±2.5% Lifespan: >1million times Initial Resistance: >10M?(no load) Response Time: <1ms Restore Time: <15ms Test Voltage: DC 3.3V (typical)
Operating Temperature: -20? ~ 60? EMI: Not generate EDS: Not sensitive
Sensing Area Outer Diameter: 9mm Sensing Area Inner Diameter: 7.5mm Pin Spacing: 2.54mm
Quantity: 1
Package Includes:
1 x Pressure Sensor
Note: Please allow small size error due to manual measurement. Thanks for your understanding.
