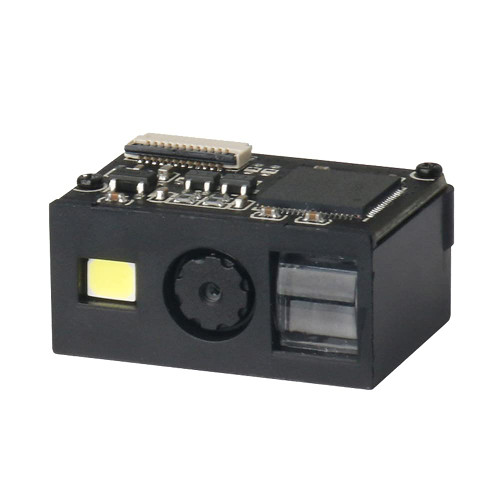

EVAWGIB Embedded 1D/2D Barcode Scanner Module Kiosk Arduino Barcode Scan Engine TTL Small QR PDF417 Code Barcode Scanner Module

This is a small 1D/2D codes reader, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and accurately. Through TTL interface, it can be directly plugged into a computer, or be easily integrated to kinds of devices due to its small form factor. Features Easy to use, requires no knowledges of image recognition Decodes various common 1D/2D codes such as Barcode, QR code etc. Specifications Operating voltage: 3.3V Operating current: 135mA (scanning), 58mA (standby), 2mA (sleep) Operating temperature: 0°C~60°C Operating humidity: 5%~95% (Non-condensing) Communication interface: TTL Decodes 1D codes: Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar(RSS) Decodes 2D codes: QR code, Data Matrix, PDF417 Light source: white Scan angels: roll 360°, skew ±65°, pitch ±60° Field of view: 28° (horizontal), 21.5° (vertical)
