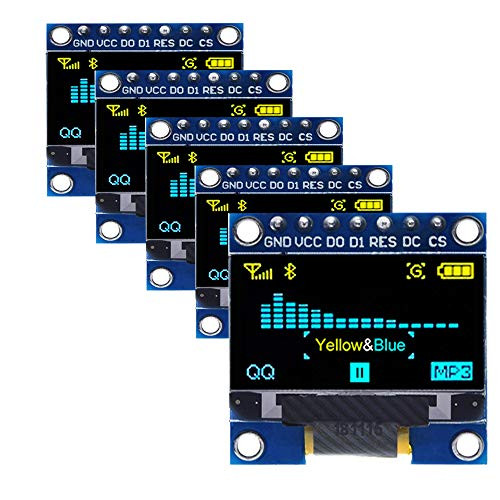

Esooho Gikfun 0-96 7Pin SPI OLED Display Module for Arduino Raspberry Pi ESP8266 Microcontroller ARM GK1013

OLED has the characteristics of self-illumination, large viewing angle of the screen, low power consumption, high contrast, thin thickness and fast response. It can be used for flexing panels, with a wide temperature range and simple structure. Driver chip: SSD1306 Driving voltage: 3.3V-5V Communication method: SPI Resolution: 128*64 Display color: blue Pixel pitch: 0.17*0.17mm Pixel size: 0.154*0.154mm Low power consumption: 0.06W in normal display Viewing angle: greater than 160° Working temperature: -40~70°C Pin: GND VCC D0(CLK) D1(MOSI) RES DC CS GND: power ground wire VCC: Power supply 3.3V-5V D0 (CLK): clock line D1 (MOSI): data line RES: OLED reset DC: Data / Command Selection CS: OLED SPI chip select signal, low level makes it effective, if you don't want to use it, you can connect to GND
