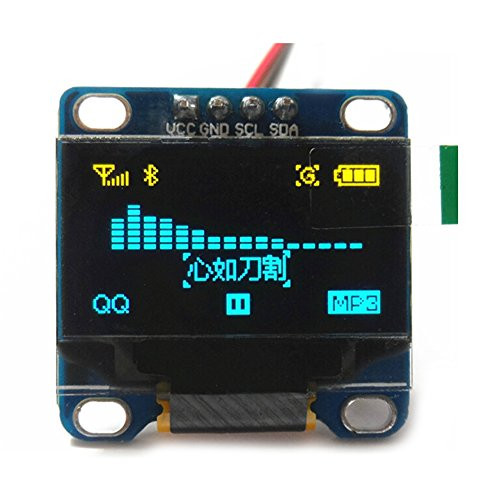

Esooho Gikfun 0.96 4Pin IIC I2C OLED Display Module for Arduino Raspberry Pi ESP8266 Microcontroller ARM GK1014

OLED has the characteristics of self-illumination, large viewing angle of the screen, low power consumption, high contrast, thin thickness and fast response. It can be used for flexing panels, with a wide temperature range and simple structure. Driver chip: SSD1306 Driving voltage: 3.3V-5V Communication method: IIC Resolution: 128*64 Display color: blue Pixel pitch: 0.17*0.17mm Pixel size: 0.154*0.154mm Low power consumption: 0.06W in normal display Viewing angle: greater than 160° Working temperature: -40~70°C Pin: GND VCC SCL SDA GND: power ground wire VCC: Power supply 3.3V-5V SCL: IIC clock line SDA: IIC data line
