Features:
High quality audio decoder which, supports MP3 and WAV audio formats.
Works with most Windows, Mac, and Linux systems
Sampling rates supported: 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48 (KHz).
24 bit DAC output and supports dynamic range 90dB and SNR 85dB.
Supports one-on-one 4 button trigger control mode and RS232 serial port control mode.
In button control mode, it plays back 4 sounds one-on-one by negative triggering.
Uses microSD card and the built-in SPI flash memory as storage.
Built-in 4MB SPI flash memory by default.
Supports max. 32GB micro SD card.
Possible to load audio files to the flash memory directly via the micro USB port. Connecting to a computer is similar to using a USB flash drive with PC.
Built-in mono 10 watt amplifier that can drive a 10 watt (8 ohm) speaker directly. Or 5 watt (if using 4 ohm speaker)
Equipped with a 3.5mm audio jack for stereo output that can drive an earphone directly or to connect with an external amplifier.
Wide range for power input (DC 8-24V).
PCB size: 52mmx49mm
Technical Parameters:
Working voltage: DC 8V-24V
Working current: ?400mA (Input: DC12V DC)
Working current if playback through headphone jack only: 30mA (Input 12V DC)
Standby current: 10mA (Input 12V DC)
Power Consumption: ?10W
Onboard flash memory size: 4MB
Audio format: MP3 and WAV
Instructions:
http://www.electronics123.net/amazon/datasheet/FN-BC04-TB-Instructions.pdf
http://www.electronics123.net/amazon/datasheet/FN-BC04-TB-HTML-Instructions.html

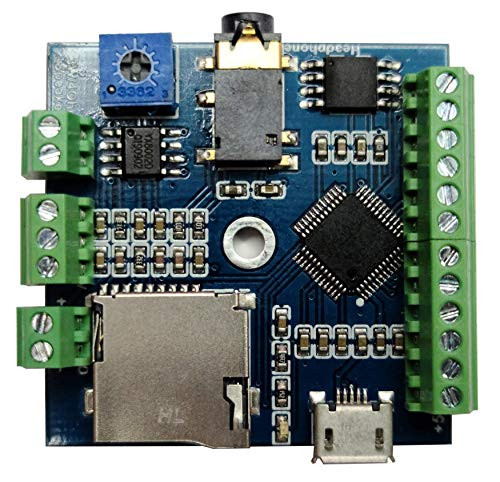

Electronics123 com Inc 4 Buttons Triggered MP3 Player Board with 10W Amplifier and Terminal Blocks
Was:
$130.40
Now:
$65.20
- SKU:
- O56227
- UPC:
- 736902547731
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
