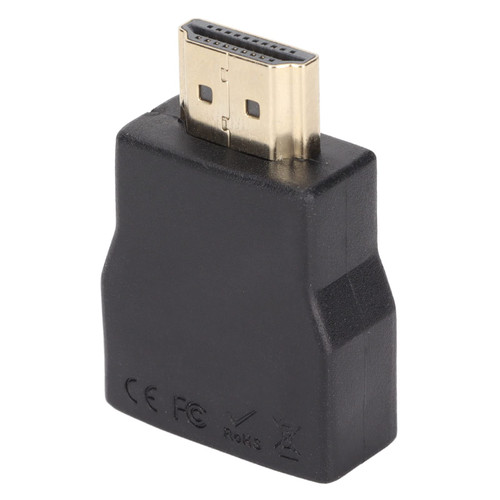

Eazy2hD HDMI Surge Protector Mini Portable HDMI 1.4 Protector for ESD and lighting surge Protection,support HDCP

IntroductionThe HDMI surge protector is used to protect the HDMI devices against Electrostatic discharge/Cable Discharge Events/Lightning. It is active on all TMDS channels and will act as a final defense for ESD and lightning surge.FeatureCompliant with HDM1.4,HDCP.Protect HDMI Input and Output for ESD and lighting surge.Meet IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact).Meet IEC 61000-4-4 (EFT) 40A (5/50ns). Meet IEC 61000-4-5 (Lightning) 5A (8/20?s).Spark voltage/Current protection.SpecificationsInput:1 x HDMI Male port Output:1 x HDMI Female portOperating Temperature Range:0?C ~ 40?C / 32?F ~ 104?F Operating Humidity Range:5 to 90 % RH (no condensation) Connections and Operations1.Insert the male HDMI jack of the protector to the HDMI out of the Source(DVD,PS3..etc)2.Connect the HDMI out of the protector to the display (HDTV) by HDMI cable.Connections and Operations1.Insert the male HDMI jack of the protector to the HDMI out of the Source(DVD,PS3..etc)2.Connect the HDMI out of the protector to the display(HDTV) by HDMI cable.Package1 X HDMI Surge Protector1 X User Manual
