Product Description:
E-TING Push / Pull Quick-Release Toggle Clamp is a must-have addition to your jig assembly. With its sturdy construction and efficient design, this essential tool ensures that you achieve a rock-solid grip on your work piece, thus providing a hold that wont slip.
Features a push or pull design and mechanism, to allow for maximum clearance.
Vinyl colored grip for easy identification and comfort.
Zinc-plated coating for corrosion resistance. Retracted clamp will allow to hold workpiece in a vertical position. This versatile and handy clamp makes woodworking perfection a breeze.
Specifications:
Type: GH-302-FM Push / Pull quick release holding clamp
Measurement: 6 * 2.5 * 2.1 inches
Handle Opens Angle: 180°
Push rod range ( without clamp bolt ): 32 mm
Holding Capacity: 136KG / 300 lbs
Clamp base: 5.5 x 5.5 cm / 2.165 x 2.165 inches
Mounting holes: 4.1 x 3.5 cm /1.61" x 1.38" inches spaced apart
Plunger bolt thread model and size: M8 screw ( 5/16-18 bolt ), 3.2cm / 1.26" inches long
Push rod range ( without clamp bolt ) from end of base to end of push rod: 21.5cm / 8.46" inches
Clamp height, including handle, when clamped: 10cm / 3.94 inches
Total length when clamped ( without clamp bolt ): 14cm / 5.51" inches
All in all, small tool, big help!

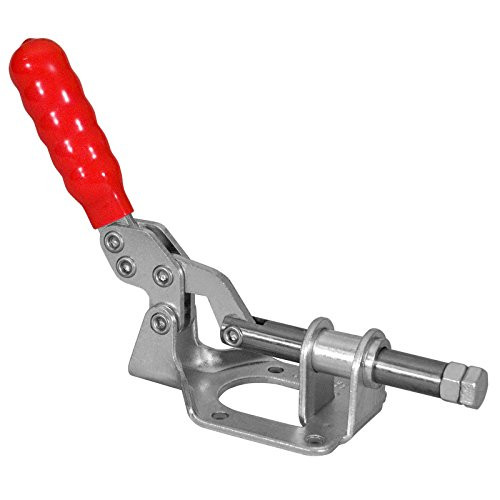

E-TING Hand Tool 300 Lbs Holding Capacity Toggle Clamp 302F Push Pull Quick-Release Clamp
Was:
$47.48
Now:
$23.74
- SKU:
- QT91924
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
