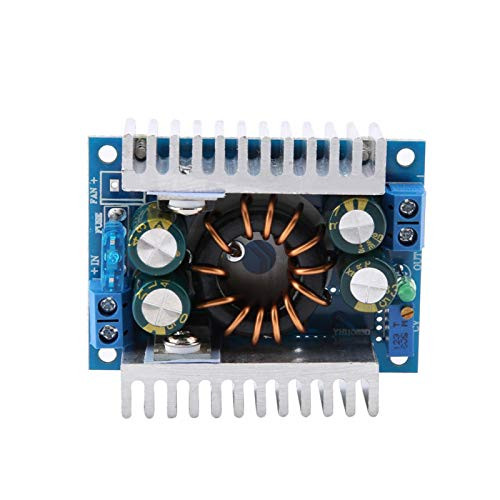

DZS Elec 150W DC-DC Step Up Boost Converter DC 10-32V/8-32V to DC 10-46V/8-46V 8A High Power Adjustable Voltage Charger Module Power Supply Module

Feature: Module Name: 150W DC Step Up Boost Converter Module Type: Non-isolated step-up module Module Size: 60X50X20mm Two Optional Input Voltage: To select input voltage by adjusting the jumper on the back of PCB. Input Voltage 1: DC 10-32V (for vniversal input voltage applications), output 10-46V (Adjustable, Default 19V) Input Voltage 2: DC 8-16V (for 3 series lithium batteries and 12V accumulator), output 8-46V (Adjustable, Default 19V) Input Current: 16A (MAX) Please enhance heat dissipation if more than 8A Output Current: 8A (MAX) Please enhance heat dissipation if more than 4A Static Working Current: 15mA (When 12v is up to 20v, the higher output current is, the static working current will be increased.) Output Power: 90W(natural heat dissipation), 150W(enhanced heat dissipation) Capacitance: 2x470uF/35V (input); 2x330uF/50V(output) Work Temperature: -40 degree to + 85 degree Working Frequency: 150KHz Transfer Efficiency: up to 95% ( Input 24V to Output 42V 3A, Value 95.2%) Short-circuit Protection: Yes Reverse Voltage Protection: No Install: 4x3mm Screws Connection: Solderless terminals, V-IN input, V-OUT output Applications: 1. DIY regulated power supply, higer power notebook portable power source. 2. As vehicular power supply, or boost regulated power supply, setup output value according to your system voltage, supply power for you electronic equipment. Package Include: 1pcs 8A 150W Boost Converter
