Pay Attention:
This is not a USB to RS232 DB9 adapter, it is a USB to 5.0V TTL adapter. TX, RX are 5V TTL levels, not RS232 signals.
Specification:
Model:SH-RS232C
Main chip: FTDI FT232RL
Connectors: USB Type A, DB9 Female;
TTL signals: TxD, RxD, RTS, CTS,GND
TTL Level: 5V
The maximum speed: 3Mbps
Cable Lenght: 1.8M/5.9 FT
Powered by USB port, no external power adapter required.
Plug & Play after one time driver installation;
List of supported systems:
1,Windows 7,8,10
2,Linux kernels 2.4.31 and later.
3,Mac OS X 10.6 and above(64 bit)
You can also download the driver directly from FTDI's website
Works with software
HyperTerminal, TeraTerm, WinDBG, all open source serial software on Linux, etc.
Package Content
1 x SH-RS232C Female Serial Cable
1 x Driver CD
1 x User guide
WARRANTY:
DSD TECH offers a 12-month warranty on this USB to Female DB9 TTL Cable. If you have any questions, please contact us and we will resolve your issue within 24 hours.

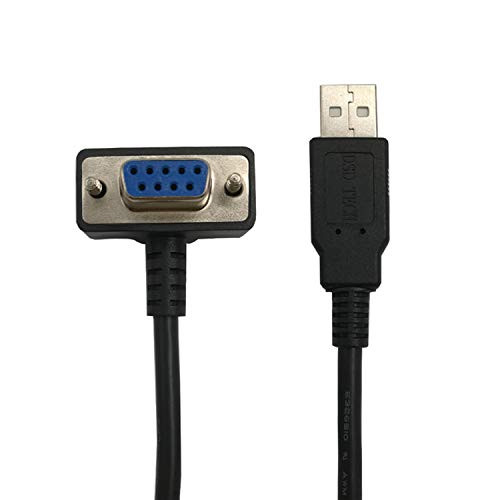

DSD TECH SH RS232C USB to DB9 Female TTL Adapter Built in FTDI Chip for Windows Linux and Mac OS
Was:
$103.78
Now:
$51.89
- SKU:
- ST36936
- UPC:
- 794251082716
- Condition:
- New
- Availability:
- Free Shipping from the USA. Estimated 2-4 days delivery.
