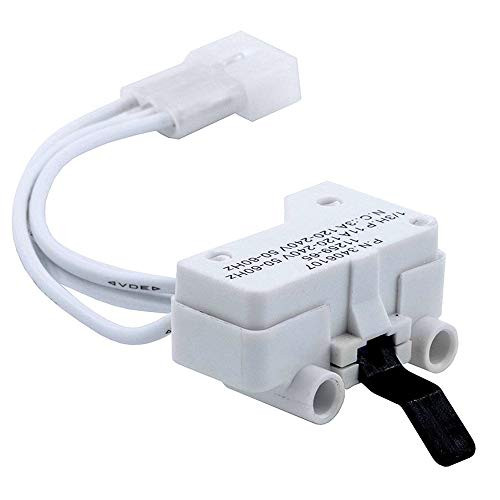

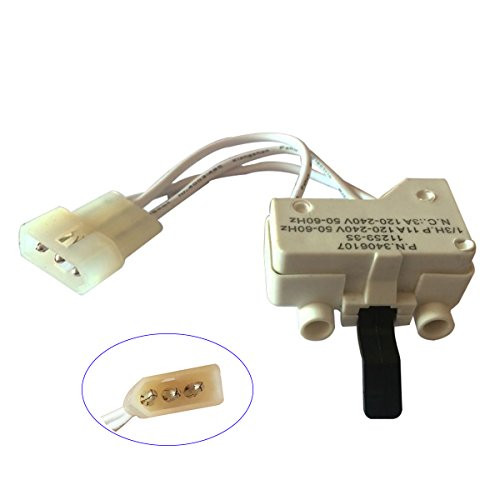

Dryer Door Switch Assembly Replacement 3406109 for Whirlpool, Kenmore, Sears, Maytag, Roper, Estate WP3406107 AP6008561 3406107

Product description This is a 3406107 Dryer Door Switch Replacement for Whirlpool, Kenmore, Sears, Maytag, Roper, Estate. The 3406107 door switch is a simple on/off switch mechanism that prohibits the dryer from operating when the door is open. This part may need to be replaced if you find that the dryer is not starting, will not shut off or the door will not close properly. All you will need is a putty knife and a Phillips screwdriver. Pry open the top of the dryer, remove the two screws underneath the lint collector without removing the entire thing, unplug the switch, remove the screws that hold the switch place, take out the old switch and install the new one by screwing it back into place. Specification:1/3 H.P 11A 120-240V 50-60Hz, N.C: 3A 120-240V 50-60Hz Works with the following model:Replaces Whirlpool 1CWD5100VQ0, 1CWED5100VQ0, 1CWED5100VQ1, 1CWED5200VQ0, 1CWED5200VQ1, 1CWED5300VW0, 1CWED5700VW0, 1CWGD5100VQ1, 1CWGD5200VQ0 etc. Replaces part numbers:3405100, 3405101, 3406100, 3406101, 3406109. 3406107, 3406105, AP3132865, 3405100, 3405101, 3406100, 3406101, 3406109, 528948, AH346704, EA346704, PS346704, AP2976041, 3406104, 3405104, 3405105, 528947, AH346703, EA346703, PS346703. Works with most top name brands: Whirlpool, Kenmore, Maytag, KitchenAid, Roper, Estate, Amana, Crosley, Inglis, Admiral, Magic Chef. Fixes the following symptoms: Will Not Start. Will not shut off Will not tumble Shuts off too soon. No heat or not enough heat. Door won't close. Manufacturers' part numbers are solely for identification. All materials supplied by us are our replacements for manufacturers' parts. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
