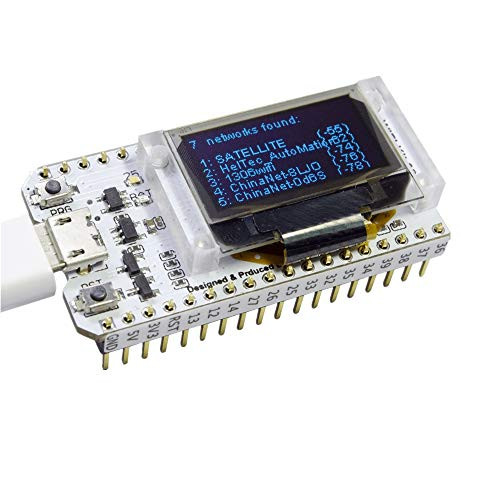

DollaTek ESP32 OLED WiFi Kit ESP-32 Internet Development Board with 0.96 Inch OLED Display WiFi and Bluetooth CP2012 for Arduino

Description: WIFI Kit series is the new development of the cost-effective networking program, the main chip using Lexin ESP32, Tensilica LX6 dual-core processor, 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth). Onboard 4MByte(32M-bit) Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment Specification: Operating voltage: 3.3V to 7V Operating temperature range: -40 °C to + 90 °C Data rate: 150 Mbps 11n HT40,72 Mbps 11n HT20,54 Mbps 11g, 11 Mbps 11b Transmit power: 19.5 dBm 11b, 16.5 dBm 11g, 15.5 dBm 11n Flash Size: 4MByte(32M-bit) Module Size:50x25.4x10.3 mm Lithium battery interface:2Pin-1.25mm interface Receiver sensitivity up to - 98 dBm UDP continues to throughput by 135 Mbps Supports Sniffer, Station, softAP and Wi-Fi Direct modes Package Including 1 x ESP32 Development Board with OLED 2 x Pin headers
