Feature:
Combines two functions in one
It is miniature, accuracy, and more cost-effective.
One digital meter can use as two, and save space and bring more economy for user.
Specifications:
Working current of Meter itself:?20mA
Voltage Measuring range: DC0-100V
Current Measuring range: DC0-10A
Voltage resolution (V): ±1%
Current resolution (A): ±0.1%
Display: 0.28 digital tube, Two color blue and red
Operation Temp: -10?-+65?
Dimensions:48mm*29mm*22mm
Operating temperature: -10 to 65° c
Operating Humidity: 10 to 80% (non-condensing)
Applications:
Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement
Wiring: Black line (thin): vacant or buck circuit (module) negative
Red line (thin): power supply+ Black line (thick): COM, common measuring
Red line (thick): PW+, measuring terminal voltage input positive
Yellow line (thick): IN+, current input+ (Please refer to the wiring diagrams for more details)
Package Contains:

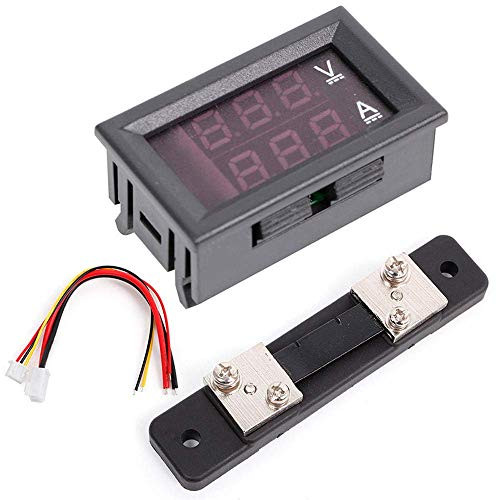

1x DC 100V 10A Voltmeter & Ammeter
Note:
Please allow 1-2mm errors due to manual measurement.
Due to the difference between different monitors, there are color differences, please take the real product as the standard.
1. Is there a calibration function?
A: Yes,off course
2. How is the quality?
A: Very accurate, you may need to get a 5v charger power supply
3. Are the ammeter and voltmeter independent of each other?
A: No,they are Designed integrated
