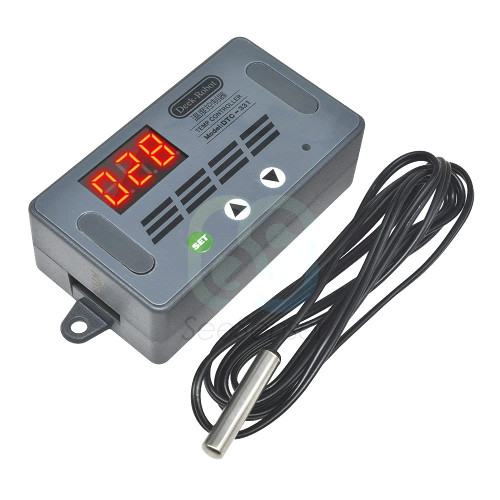

Specifications:
The thermostat is just a controller. For example, the input voltage of 12V is the device that directly controls the 12V. It only controls the power-
on and power-off, and does not control the output voltage, so the relevant voltage is not displayed.
Temperature measurement range: -50 ? ~ 110 ? Resolution: 0.1 ? when -9.9-99.9 other temperature ranges 1 ?
Accuracy: ± 0.1 ?
control accuracy: 0.1 ?
Backlash accuracy: 0.1 ?
Refresh rate: 0.5S
High-temperature protection: 0-110 ?
Input voltage: DC12V
Measuring input: NTC (10K0.5%) Waterproof sensor
Input: one 20A relay
Environmental requirements: -10 ? --60 ? humidity 20% - 85%
Size: 48mm (length) * 29mm * wide Depth: 32mm
Hole size: 46 * 26.5mm
Power consumption: Static current ?35MA pull current: ?65MA
Connect the power supply and the load supply to the controller. The currently measured temperature (top) is displayed as red. The desired temperature to be set (bottom) is blue. Press STC (+) C / F (-) to set the desired temperature. 3 seconds after setting just confirm that it has been set, then the controller will automatically execute. The thermostat output is 10A relay which meets a variety of high-power loads, but just make sure that the line is connected correctly.
LEDs, LED Status Description.
LED: Off indicates the relay off; Always indicates the relay is closed.
Digital tube: if the open display HH LL sensor measurement range is exceeded, the thermostat will be forced off the relay display. This is high temperature protection.
Note:
This Digital Temperature Controller is not original parts, the mention of brand names and any related model designation above is only for purposes of demonstrating compatibility.
NO installation instruction and recommend professional installation.
