REX-C100 Temperature Controller:
Measuring accuracy: ±0.5%FS
Cold-end compensation tolerance: ±2 (can be modified by software in 0~50 )
Resolution: 14 bit
Sampling cycle: 0.5 Sec
Power : AC 220V 50/60HZ
Process value (PV),Setting value (SV)
Output, alarm and self-tuning can be indicated by:LED
PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
Relay output: contact capacity 250V AC 3A (resistive load)
Alarm function output: 2 way
Proportional band (P): 0~full range (ON/OFF control when set to 0)
Detective temperature range: 0 to 400
Insulation resistance: >50M ohm(500V DC)
Insulation resistance : 1500V AC/min
Insulation resistance : Power consumption < 10 VA
Service environment: 0~50
environment with no corrosive gas 30~85% RH
K Thermocouple Probe Cable: Sensor diameter: 4.5mm Temperature rang: 0-400 Internal Insulation: Fiberglass External Shielding: Insulated shielding
Solid State Relay SSR-40DA: Output Current: 40A Input Voltage: DC 3-32V Output Voltage: 24-380V AC Output Voltage Range: Standard type

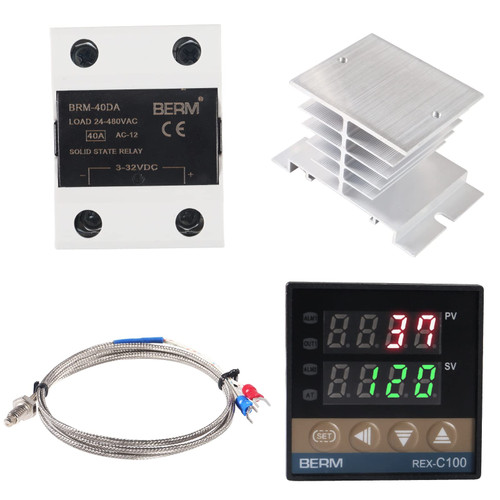

Package included: 1 X PID temperature controller 1 X K Type probe sensor 1 X Solid state relay 40DA 1 X Aluminum heat sink
