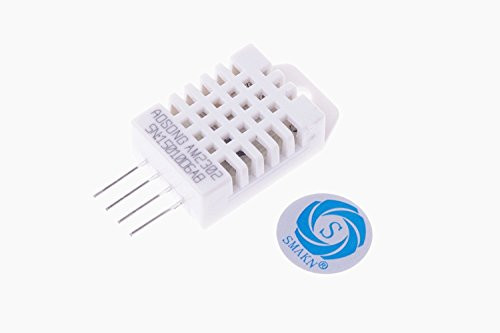

DHT22/AM2302 Digital Temperature And Humidity Measurement Sensor for Arduino Home Appliance @XYGStudy

Overview This is a calibrated digital temperature and humidity module with onboard sensor DHT22 (AM2302), which features higher accuracy and wider measuring range than DHT11. It can be used for detecting ambient temperature and humidity, through the standard single-wire interface. Applications Weather station Humidity controller Test & detection device How to Use In the case of working with a MCU: * VCC ? 3.3V ~ 5.5V * GND ? GND * DOUT ? MCU.IO Package Contains DHT22 Temperature-Humidity Sensor ?1 XH2.54 3-pin wire ?1 For more resources you may need, pls contact me via Amazon message, i will send you then via attachment.
