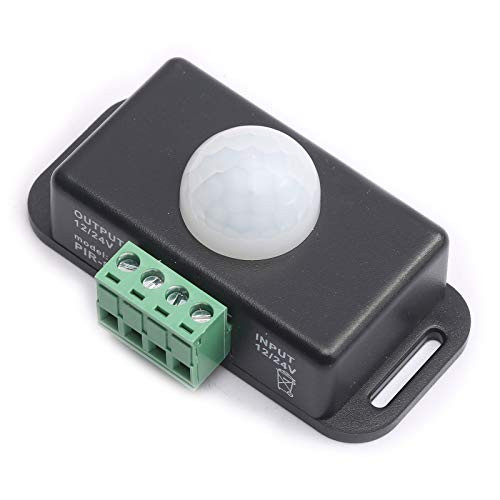

Mini DC 5V - 24V Infrared Motion Sensor Switch
DC 5V - 24V mini LED motion sensor switch,used on the Motion-activated lighting PIR (Passive infrared). Motion sensor is pyroelectric device can detect human movement by detecting Infrared ray emitted by human body. Operating voltage is 5~12VDC, and output voltage is equal to input voltage. High sensitivity, easy for installing. Widely used on the Motion-activated lighting, LED strips Security System, automatic sensory device and more.
Specifications:
100% Brand new & high quality!
Passive Infrared Sensor Operating voltage: DC 5V ~ 24V, Output voltage = input voltage
Load current: < 4A
Delay time: 5~600 Seconds, adjustable(Default setting 5sec)
Detecting range: <90 degrees cone angle
Detecting distance: 0 ~ 5M, adjustable(Default setting 5M)
Size: 50 * 26 * 21.5mm
Trigger way: continuous triggering
Light sensor: NO
Automatic Induction: When people enter into the range of induction, it will output a voltage equal to input voltage, after the delay time, it will output 0V; during the delay time if motion detected, the delay time will reset, and start a new delay time. There is no light sensor control.
Package Include:
1x 1PCS MINI PIR infrared motion sensor switch
