Description

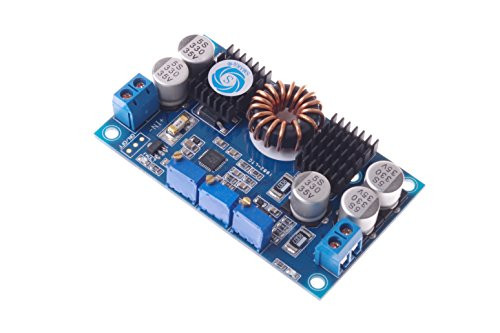

The power supply is a high efficiency and stable power supply module. When the input voltage is lower, higher or equal to the output voltage, the output voltage can maintain stability. For example, if the output is 12V, when the input voltage varies from 5 to 32V, the output voltage will remain constant at 12V. This module has proper protection function, it can be extensively used in notebooks' power supply, vehicles' power supply, and solar energy charging etc.
Electrical parameters
Input voltage: DC5-32V.
Output voltage: DC1V-30V continuously adjustable, we provide 12V.
Output current: long term is under 8A, peak value is 10A, rated is 5A.
Output power: long term is 80W, peak is 130W. When higher than 80W, please Strengthen the treatment of heat dissipation.
Input reverse connection protection: Non-existent ( If you need, please connect diode at the output port of the module).
Output prevent reverse connection protection: Non-existent ( If you need to charge, please connect diode at the output port of the module).
Working temperature range: -45 to 85 ? ( -49 to 185 ?)
Short circuit protection: Exist
Size: 77.6*46.5*15mm (including bottom heat dissipation aluminum plate)
Module weight: 37 grams
