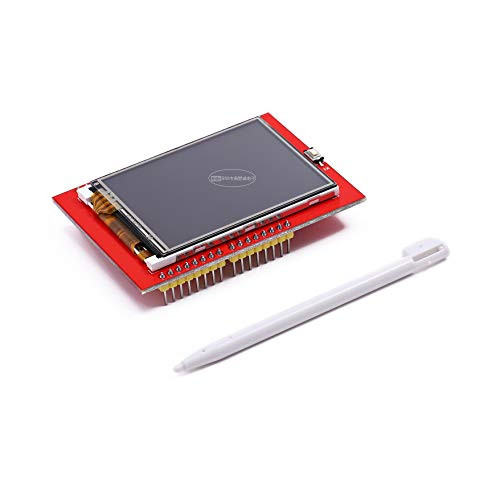

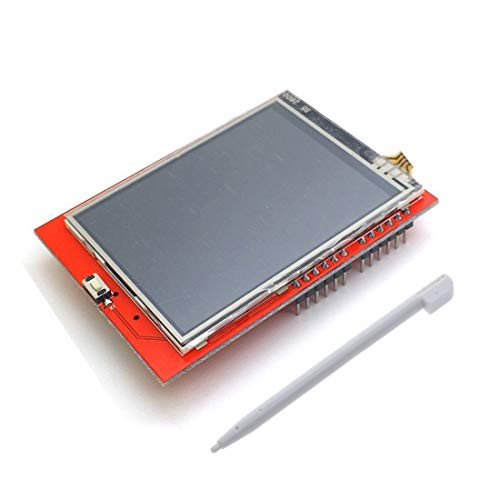

2.4" diagonal LCD TFT Touch Panel display
Bright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight control
Colorful, 18-bit 262,000 different shades
4-wire resistive touchscreen
8 bit digital interface, plus 4 control lines
Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD
5V compatible, use with 3.3V or 5V logic
For Arduino UNO R3 MEGA2560
Package included:
1*2.4" TFT LCD Display Shield Touch Panel ILI9341 240X320 for Arduino UNO MEGA
Bright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight control
Colorful, 18-bit 262,000 different shades
4-wire resistive touchscreen
8 bit digital interface, plus 4 control lines
Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD
5V compatible, use with 3.3V or 5V logic
For Arduino UNO R3 MEGA2560
Package included:
1*2.4" TFT LCD Display Shield Touch Panel ILI9341 240X320 for Arduino UNO MEGA
