Features
* Infrared detection controller, adopt infrared detection way to control load switch
* You can install the human body sensors in the appropriate environment according to actual needs
* LED Lighting motion sensing switch which provides 1 to 10 minute OFF delay timing function
* The sensor switch activates ON when a body in motion enters the field of view with an ON time hold that is adjustable from 1 to 10 minutes after motion has ceased
* PIR (Passive InfraRed, IR) sensor has an effective range of 16 feet and diminished sensing of a moving human body to 26 feet
* The field of view of the PIR Dome Lens is 60 degrees nominal
* The switch operates on 12 or 24 volts DC and can switch up to a 6 amp load
Specification

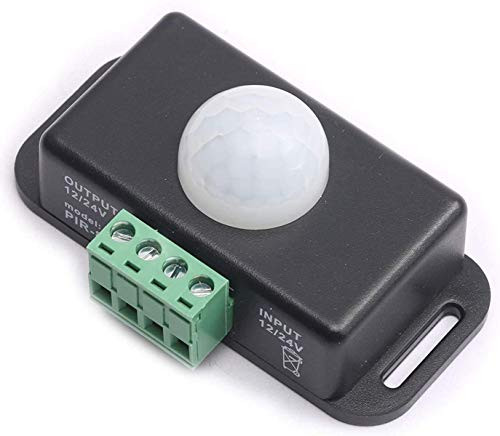

* Item name: body sense infrared led strip controller
* Power supply voltage: 12-24V
* Output voltage: 12-24V
* Max load current: 6A
* Induction range: 8m
Package includes
1pc * PIR-8 body sense infrared led strip controller
