Degraw 40 kg Tension Load Cell and HX711 Combo Pack Kit Load Cell Amplifier ADC Weight Sensor for Arduino Scale Everything Needed for Accurate Force Measurement

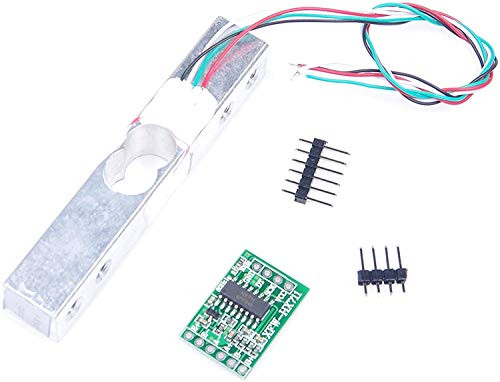

Package contents: 1 x Load cell 0-40KG with hooks 1 x HX711 24BIT Precision ADC Module on breakout board 10 x Breakaway header pins for HX711 connection Everything you need to take accurate force measurements with and Arduino, Raspberry Pi, or other microcontroller in one complete package! Information Load cell - Sturdy steel alloy construction with removable pre-attached hooks. Strain gauges pre-attached with strain relieved wires. Accurately measures forces from 0-40kg (0-88 lb). HX711 - This top of the line load cell amplifier mounted on a breakout board pairs perfectly with the load cell to provide fast, accurate force measurements. It measures small changes in the resistance of the strain gauges mounted to the load cell and passes these values directly to any microcontroller (like an Arduino or Raspberry Pi). Load cell specs:-Removable hooks pre-attached, 16 cm (6.25 in) hook-to-hook-Wire leads pre-attached, 12 cm (4.5 in) long-Load cell dims: 2.8 mm thick, 7.6 mm wide, 40 mm long (.11 in x 0.3 in x 1.56 in)-2 mounting holes, 4.2 mm diameter, 6 mm (.25 in) distance from tip. HX711 specs:-Operation Voltage: 2.7V–5V-Operation Current: < 1.5mA-Mounted on breakout board-Includes breakaway headers for connection, soldering required Connections: Red to E+ Black to E- Green to A+ White to A- Links to tutorials and libraries: https://www.instructables.com/id/Arduino-Tension-Scale-With-40-Kg-Luggage-Load-Cell/ https://learn.sparkfun.com/tutorials/load-cell-amplifier-hx711-breakout-hookup-guide https://github.com/aguegu/ardulibs/tree/master/hx711
