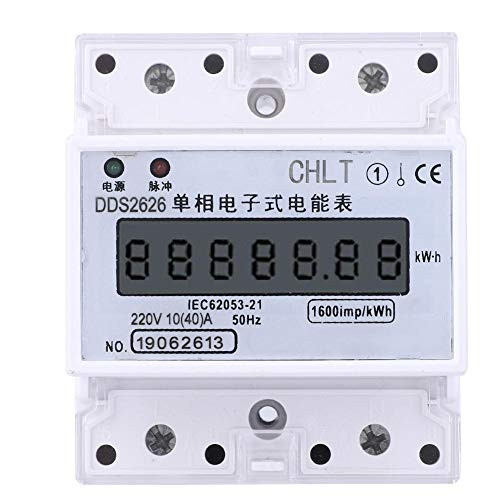

DDS2626 2P Single Phase Electronic Energy Meter LCD Display Din-Rail KWH Power Meter 10?40?A Single Phase DIN-Rail Type-Cumulative Count Backlight Display-

Feature:1. Suitable for measuring single-phase AC active energy with rated frequency of 50Hz and rated voltage of 220V. 2. Dedicated large-scale integrated circuits and SMT technologies for metering electrical energy to ensure metering accuracy and reliability. 3. 35mm standard rail mounting method, easy to install. 4. 5+1 digit wide temperature LCD display, clear numerical display, easy reading. 5. The power consumption of the whole machine is less than 2W/5VA, energy saving and environmental protection. Specification: Condition: 100% Brand New Item Type: Energy Meter Model: DDS2626 Accuracy: Class 1 Rated Voltage: 220V Frequency: 50/60Hz Rated Current: 10 (40) A Display: LCD display Installation and Wiring: This product should be wired according to the "L incoming end N" and "L outgoing end N" wiring, and the 2.54 socket end is the pulse output end for error detection or as a pulse signal interface. Special note: Since the current and voltage signals are shunted, the voltage divider resistors are sampled, and the forward and reverse are counted up. Therefore, any watch can be moved in and out, or up and down, without affecting the use. Transportation and Storage: 1. The product should be stored in the original packaging. The local environment to be stored is 0-40°, the relative humidity is not more than 85%, and there should be no corrosive gas in the air. 2. The product should be stored in the warehouse and placed on the gantry. The stacking height should not exceed 5 boxes. After unpacking, the single product stack height should not exceed 10PCS. Package List:1 x Energy Meter4 x Blue Cover
