Features:

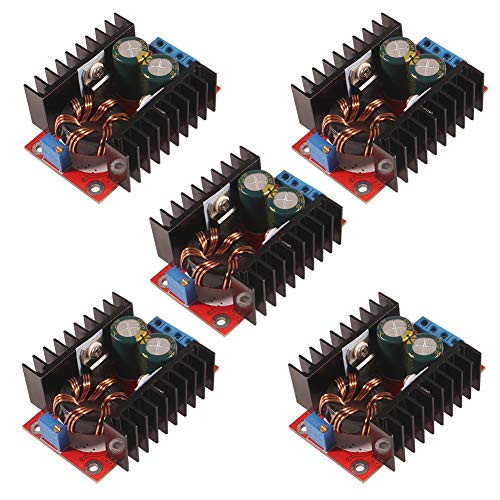

This is a non-isolated DC power converter module with long service life. High power and stable output, it converts 10-32VDC to 12-60VDC. High quality components ensures high conversion efficiency, up to 95%. Designed with large heat sinks for better heat dissipation. Widely use for solar power voltage stabilization charging, battery pack charging, large power LED driving, etc.
Specification:
Type: Non-isolated step up module (BOOST)
Input Voltage: 10~32VDC
Input Current: 16A (MAX.); if more than 8A, please enhance heat dissipation
Quiescent Current: 15mA(tested when converting 12V to 20V; it will increase when output voltage is higher)
Output Voltage: 10~60VDC continuously adjustable
(Applies only to where the input voltage is less than the output voltage, can not step down voltage)
Output Current: 8A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 4A)
Constant Current Output Range: 0.3~8A
Turn Lights Adjusting Range: 0.3~8A
Output Power: Natural cooling 90WMAX; Enhanced cooling 150WMAX
Operating Temperature: -40? to 85?(if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz
Conversion Efficiency: 95% (Efficiency is related to input/output voltage, current and voltage difference)
Short Circuit Protection: Yes (input 15A fuse)
Reverse Input Protection: No, usually can connect diode in series to the input
Output Indicator Light: With charging indication; it shows red when charging, green when fully charged
Output Flow Back Protection: Yes
Installation Method: Four 3mm screws (NOT included)
Wiring Method: Terminal blocks
Weight: 74g / 2.6oz (approx.)
Package list:
1 * Voltage Converter
DC Step Up Converter- 10-32V to 12-60V Voltage Boost Power Supply Converter DC to DC Voltage Step Up Converter Module
