XWST DCDC Power Supply Boost Module Technical Specification:
Input Voltage: DC 9V~13V (12V)
Output Voltage: DC 15V
Output Current: 15A
Output Power: 225W
Conversion Efficiency: >93%
No Load Voltage Range: Set voltage ±3%
Load Regulation: ±3%
Quiescent Power Dissipation: <10mA
Operating Temperature: -25~65?
Storage Temprature: -40~80?
Operating Humidity: 10%~90%
Waterproofing Grade: IP67
Over-current Protection: Yes
Over-temperature Protection: Yes
Short-circuit Protection: No
Size: 74mm x74mm x 32mm
Net Weight: 260g
Material:aluminium shell
Note:
1. Connect the wiring in strict according with the wiring instruction.
2. Use short and thick input & output wire to ensure output enough voltage and power.
3. If there are multiple output wire, do not combine the load.
4. Leave a margin for the power supply to ensure it can long-term stably working.
Package Included:
1x DC-DC Converter

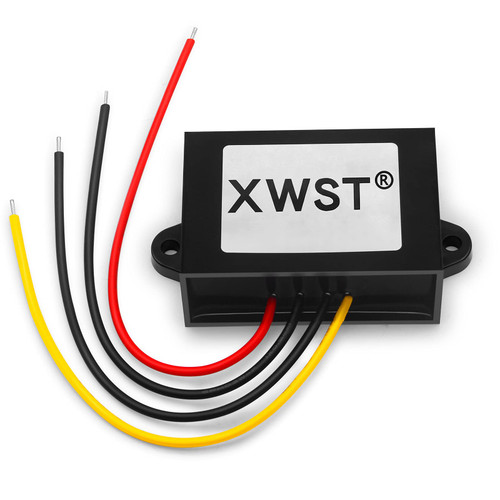

DC DC 12V to 15V 15A Step-up Module,Boost Converter 9V-13V to 15V Voltage Regulator,Waterproof Power Adapt 225W 15V Volt Transformer Module(12V to 15V 15A)
