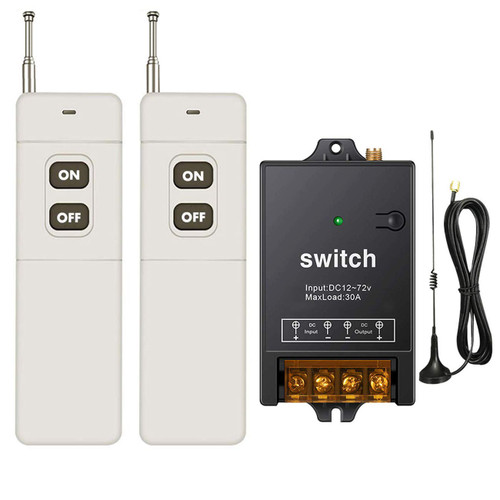

dc 12v Wireless Remote Control Switch 4 Channel Remote Control 2000 Meters Long Distance dc Access Control Remote Control Switch Farm Agriculture Switch Relay Output Water Pump Motor Lighting

Package Include 1* Receiver 1* Remote Control (with battery, If you need extra remote control , please tell us. ) Parameters: Working voltage: DC12V Receive sensitivity: >-114dB Control Modes: Toggle, Momentary, Latch Maximum Working Current: 10A / each channel Operating Temperature: -20 ° C to +70 ° C Working Range(actual Test distance: 2360M without obstacles in open space) The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance. Control mode Description Toggle (1 button on / same button off) Latch (1 button on / other button off) Momentary (Press and hold -> On; Release -> Off) Set the different control modes: Toggle: Jumper on "T-PIN" + Middle PIN Momentary: Jumper on "M-PIN" + Middle PIN Latch: without jumper Learn method: Turn on the power, Receiver light will light for 3 seconds, After it is extinguished, press the learning button briefly. The indicator light is on. Press the remote control button immediately. The indicator light will turn off. Learn success Clear code:Turn on the power, Receiver light will light for 3 seconds, After light extinguishing, press and hold the learning button of the receiver. The indicator light is on. After 8 seconds, the indicator light flashes three times and goes out. The clear code is successful.
