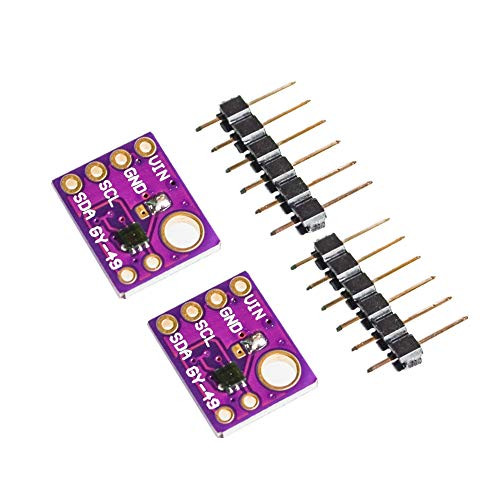

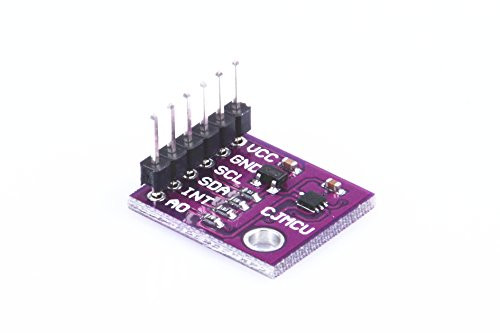

Comimark MAX44009 Ambient Light Sensor I2C Digital Output Module Development Board Module 2Pcs

The MAX44009 ambient light sensor features an I2C digital output that is ideal for a number of portable applications such as smartphones, notebooks, and industrial sensors. At less than 1?A operating current, it is the lowest power ambient light sensor in the industry and features an ultra-wide 22-bit dynamic range from 0.045 lux to 188,000 lux. Low-light operation allows easy operation in dark-glass applications. The on-chip photodiode's spectral response is optimized to mimic the human eye’s perception of ambient light and incorporates IR and UV blocking capability. The adaptive gain block automatically selects the correct lux range to optimize the counts/lux. The IC is designed to operate from a 1.7V to 3.6V supply voltage range and consumes only 0.65?A in full operation. It is available in a small, 2mm x 2mm x 0.6mm UTDFN-Opto package. specification: Wide 0.045 Lux to 188,000 Lux Range Small, 2mm x 2mm x 0.6mm UTDFN-Opto VCC = 1.7V to 3.6V ICC = 0.65?A Operating Current -40°C to +85°C Temperature Range Device Address Options 1001 010x and 1001 011x PCB size:(L*W)1.32*1.05cm/0.52"*0.41" Applications/Uses: Cellular Phones/Smartphones Digital Lighting Management Portable Devices Security Systems Tablet PCs/Notebook Computers TVs/Projectors/Displays   Package includes: 2 PCS MAX44009 Ambient Light Sensor Module for Arduino with 4P Pin Header new
