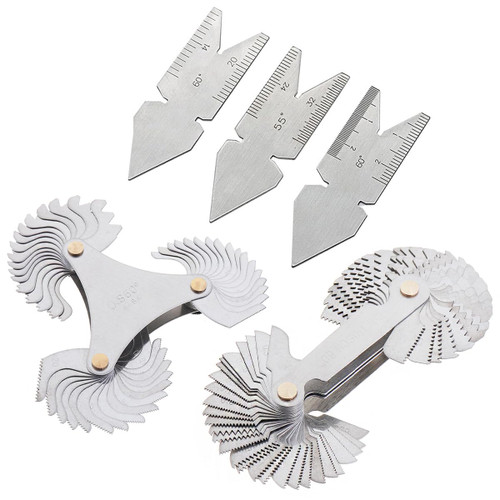

ChgImposs 58PCS Blade Metric & Imperial & US SAE Screw Gauge + 51PCS Blade America SAE Type + 3PCS 55 & 60 Degree Center Gauge, Stainless Steel Thread Pitch Gauges Measure Tool Set

58PCS Metric & Imperial & US SAE Screw Gauge Specifications: Features: - It is useful to check the tool angle when cutting threads on a metal lathe. - Check the angle on the thread cutting tool on the V-groove of the gauge. - It is 55 Degree & 60 Degree Thread / Screw Pitch Gauge gage with lock up device. Type: Thread gauge Material : Stainless steel Color: Silver Specification: Metric & Imperial Blade Thickness: 0.4cm Applicable: Industrial measurement Measuring Range: - Metric: 6.0, 5.5, 5.0, 4.5, 4.0, 3.5, 3.0, 2.5, 2.0, 1.75, 1.5, 1.25.1.0, 0.9, 0.8, 0.75, 0.7, 0.6, 0.5, 0.45, 0.4, 0.35, 0.3, 0.25 - Imperial: 4G, 4 1/2G, 5G, 6G, 7G, 8G, 9G, 10G, 11G, 12G, 13G, 14G, 16G, 18G, 19G, 20G, 22G, 24G, 25G, 26G, 28G, 30G, 32G, 36G, 40G, 48G, 60G, 62G - US: 8, 10, 11, 14, 19, 28 Package Include: 1 x Screw Gauge Set 51PCS America SAE Screw Gauge Specifications: Features: - Light weight, easy to use, easy to carry. - It is most useful for checking tool angle while cutting threads in metal turning lathes. - The angles on the thread cutting tool is checked on the V slots in the gauge. - It is 60 Degree Thread / Screw Pitch Gauge gage with lock up device. - Measuring Range: 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 11 1/2, 12, 13, 14, 15, 16, 18 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82, 84 Type: Thread Gauge Material: Stainless steel Color: Silver Specification: US Blade Quantity: 51pcs Blade Thickness: 0.5cm Apply: Industrial measurement Package Include: 1 x US 60°Thread Gauge 3PCS Center Gauge Specifications: Features: - Stainless steel, durable. - The scale is clear, accurate and easy to read. - Use to grind and position thread cutting tool on a lathe. - Whitworth 55°: Front measure increment (in Inch): 1/14inch and 1/20inch; Back measure increment (in Inch): 1/24inch and 1/32inch. - US 60°: Front measure increment (in Inch): 1/14inch and 1/20inch; Back measure increment (in Inch): 1/24inch and 1/32inch. - Metric 60°: Measure increment (in Metric): 0.5mm and 1mm. Material: Stainless Steel Standards: Metric & Whitworth & US Product Name: Center Gauge Measuring Tools Package Include: 1 x Center Gauge US 60° 1 x Center Gauge Metric 60° 1 x Center Gauge Whitworth 55°
