Product information:
Power supply: DC 8-20V; 2.1 interface
Recommened power supply(V): ±5-15
Gain bandwidth(MHz): 10
Power bandwidth(KHz): 140
Conversion rate(V/us): 9
Input Offset Voltage(mV): 5 MAX
Input noise voltage(nV/Hz): 5
Common mode rejection ratio(dB): 70 Min
Quiescent Current(mA): 8
Channel: 2
Audio input(Stereo input): Support various versions of bluetooth connection; with built-in CSR8630 bluetooth chip, V 4.0 bluetooth. This Amplifier has super software compatibility
Instructions: After power on the amplifier, waiting for 3 seconds till the blue and red light flash alternately and then you can use your device to connect my bluetooth moudle-"H-DIY Audio"; the next time you use the amplifier, the device will automatically connect.

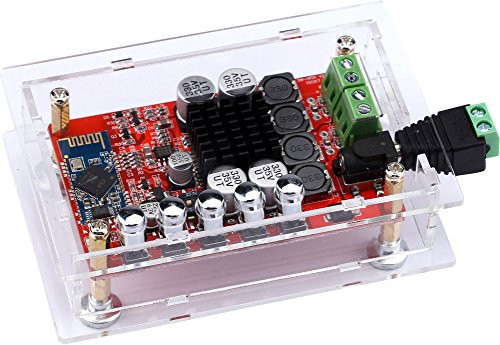

Color of the amplifier board: Red
Digital Amplifier Board Size: 82mmX50mmX15mm(L*W*H)
Acryliccaseor Size: 104mmX70mmX26mm(L*W*H)
Magnetic ottoman:?12mmX8mm(H)
Package Includes
1 x Amplifier Board
1 x 3.5mm AUX audio wire
1 x Acryliccaseor Parts and components
