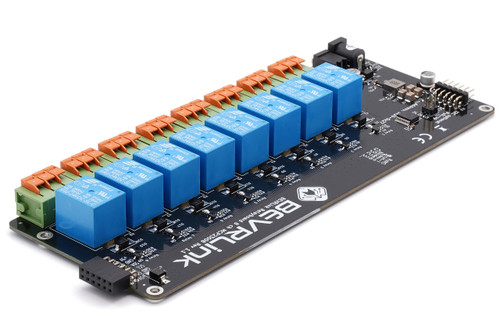

BEVRLink 8 Channel Relay 12V 8 CH for Raspberry Pi, Arduino, ESP32, ESP8266, Other Single-Board Computers and microcontrollers I2C GPIO

Overview The BEVRLink Relay 8 ch V1 12V is a versatile and reliable relay board designed for use with the BEVRLink system or directly with Raspberry Pi, Rock or other microcontrollers. With 8 channels and spring terminals for easy connection, this relay board is perfect for quickly setting up test and automation systems. The board also features LED indicators for each relay, making it easy to monitor the status of your devices. Specifications: Power supply voltage: 12V/2A Expansion and Manager connector 5V/3A power Relay channels: 8-ch Contact form: SPDT-NO, NC Connector: Spring clamp terminal block Dimension: 192.8 mm x 72 mm Mounting hole size: M3 I2C Address 0x20-0x27, user selectable I2C 4.7K optional pull-up 3.3A available for manager(raspberry pi) + additional modules BEVRLink system expansion Features: 12V/2A DC Jack power input Size: 5.5x2.1mm Relay coil supplied directly from power input, 15mA used by each relay active. 12V output connector to be used to power the next board or use to power 12 V loads connected to the relays. Manager and Expansion connector High-quality relays loads up to 5A 250VAC or 5A 30VDC Standard rail mount bottom case Onboard LEDs for indicating relay status Power Good Status LED, If the board doesn’t have enough voltage (4.7V) due to heavy load it will turn off the LED. Selectable Address Plug and play if using a BEVRLink Manager Boards, no cables needed to connect to a Raspberry Pi Good for quickly setting up test and automation systems 9V under voltage shutdown to protect the relays Simplify Your Life with a Touch of Automation - Add to Cart Now!
